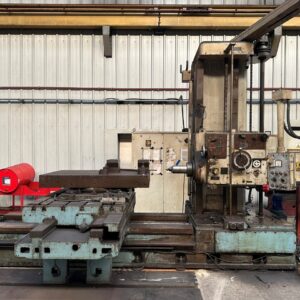

Kearns Richards SH75 Horizontal Borer

Spindle dia. 75 mm
Table size 1000 x 1000 mm (revolving)
Main motor 7.5 kw (10 hp)
Facing head
DRO

Description

KEARNS RICHARDS SH 75
Spindle dia. 75 mm
Table size 1000 x 1000 mm (revolving)
Main motor 7.5 kw (10 hp)
Spindle speeds 27
Range of speeds 5.6 to 1120 rpm
Facing head speeds 5.6 to 280
Spindle taper 40 int with power draw bar
Longitudinal traverse 1000 mm
Vertical traverse 1000 mm
Transverse traverse 1250 mm
Feeds-table-longitudinal-traverse
Spindle frame vertical 0.75 to 2500 mm min.
Feeds-traversing spindle &
Facing slide radial 0.25 to 830 mm min
Rapid power traverse:-
Table longitudinal/transverse &
Spindle frame vertical 2500 mm min.
Traversing spindle/axial facing slide radial 830 mm min
Screw cutting Imperial 4 to 16 tpi (12 off)
Metric 2 to 10 mm pitch (12 off)
Table load 2000 kg
Facing head dia. 500 mm
Facing head cap. 610 mm
Spindle traverse 500 mm
DRO

  • Condition: Used
  • Manufacturer: Kearns Richards
  • Model: SH75
