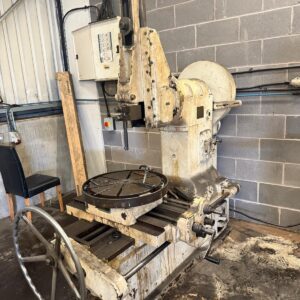

Butler 21″ Slotting Machine

Out of Stock - Click Here
Request Quote

    WhatsApp

    Description

    Butler 21″ Production Slotter

    Max Stroke 21″ / 530mm
    Min Stroke 7 ½” / 190mm
    Number of Speeds 6
    Cycles per minute 9/11/14/18/22/28
    Dia. without Extension Toolholder 6’ / 1830mm
    Dia. with extension toolholder 7’ / 2130mm
    Ram to frame 2’11” / 890mm
    Ram to frame with extensions toolholder 3’ 5” / 1040mm
    Ram to table top 3’8” / 1120mm
    Ram Adjustment 1’8” / 510mm
    Table Traverse Across 3’ / 915mm x
    Table Travers from Ram 2’9” / 840mm
    Table Dia. 3’9” / 1140mm
    Motor 15hp / 1000rpm

    Machine Data:
    Approx. Weight 9449kg
    Dimensions 3650mm L x 2430mm W x 3960mm H

    Complete with:
    Digital Readout
