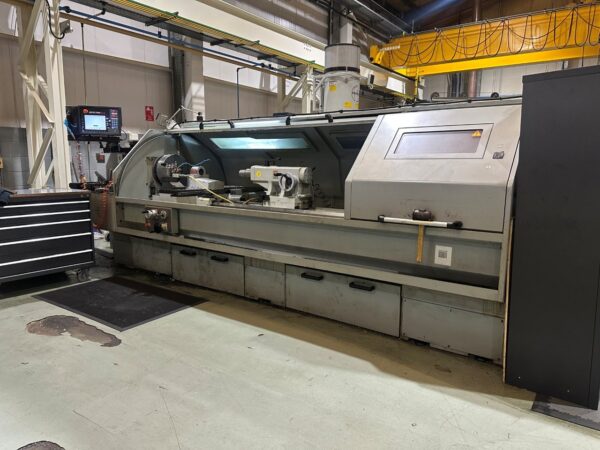

XYZ SLX 555 x 3M CNC Lathe (2018)

Stock:

Available!

Description

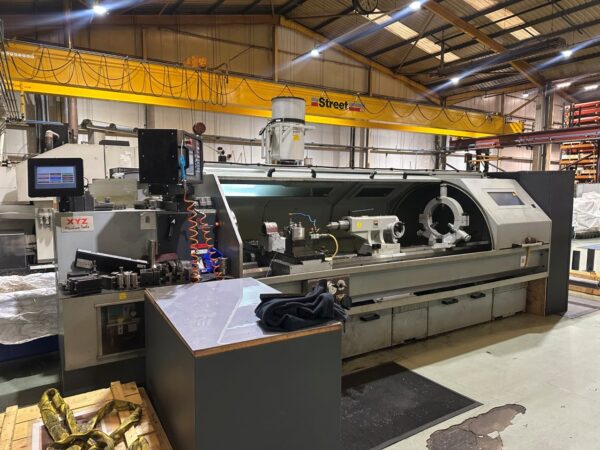

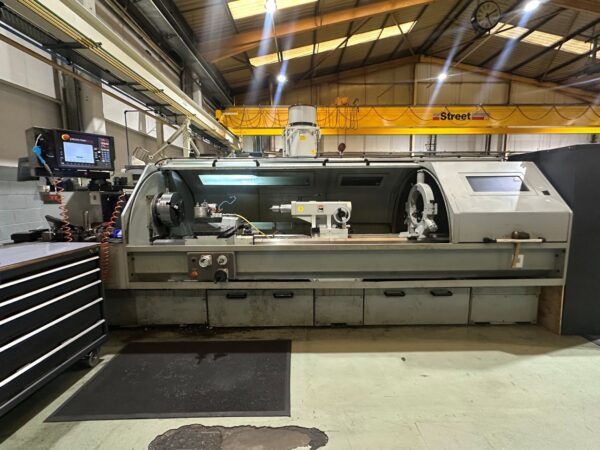

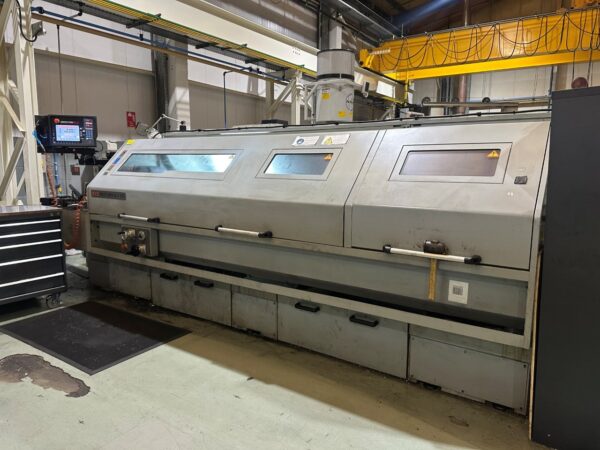

XYZ SLX 555 x 3M CNC Lathe (2018)

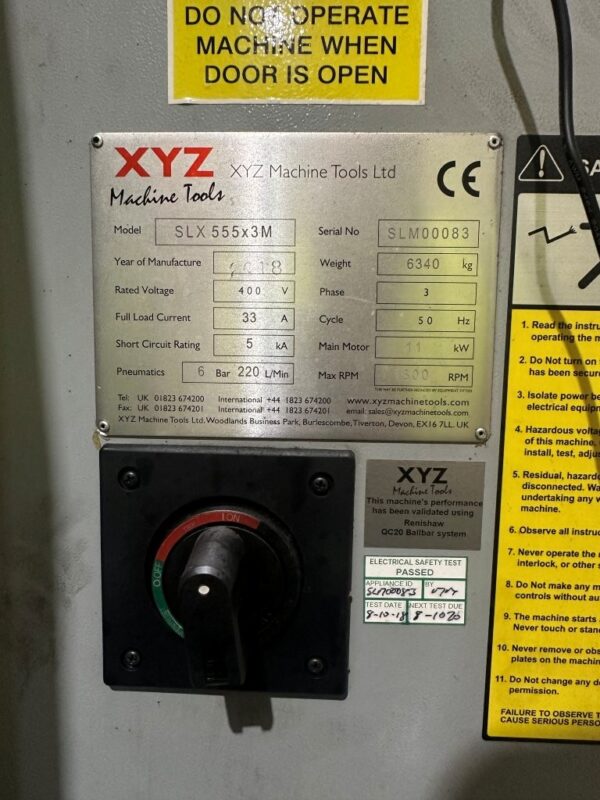

Serial Number: SLM00083
Year: 2018
Control: Protrak SLX CNC
Condition: Used – excellent condition

Technical Specifications:
Swing over bed: 560mm
Swing in gap: 935mm
Gap in front of faceplate: 297mm (max)
Swing over cross slides: 350mm
Cross slide travel: 290mm
Distance between centres: 3000mm
Maximum cutting length: 2900mm
Spindle bore: 104mm
Spindle nose: D1-11 camlock
Spindle taper: MT7 in bush
Spindle motor: 11 kW (15 HP)
Spindle speeds: 30 – 1800 rpm (2 ranges)

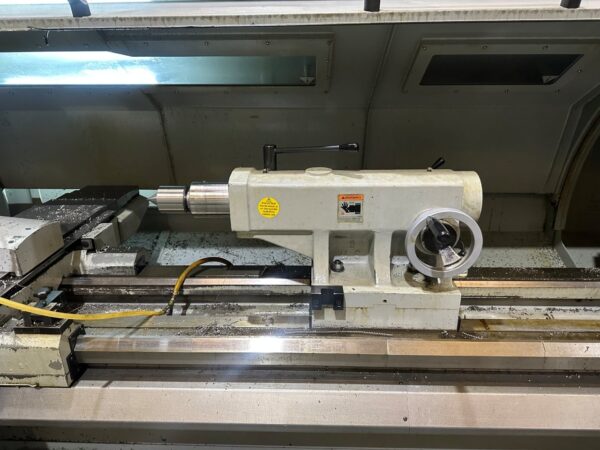

Tailstock travel: 200mm
Tailstock taper: MT6
Tailstock diameter: 105mm
Bed width: 500mm
Machine footprint (L x D x H): 5220 x 2150 x 1950mm
Machine weight: 7400kg
Features & Equipment:

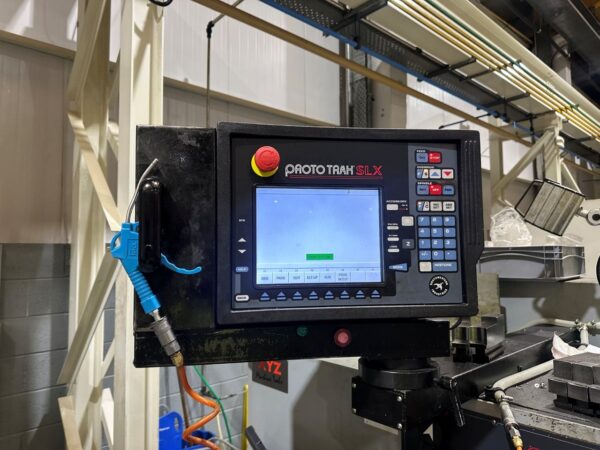

Protrak SLX control
Drilling attachment

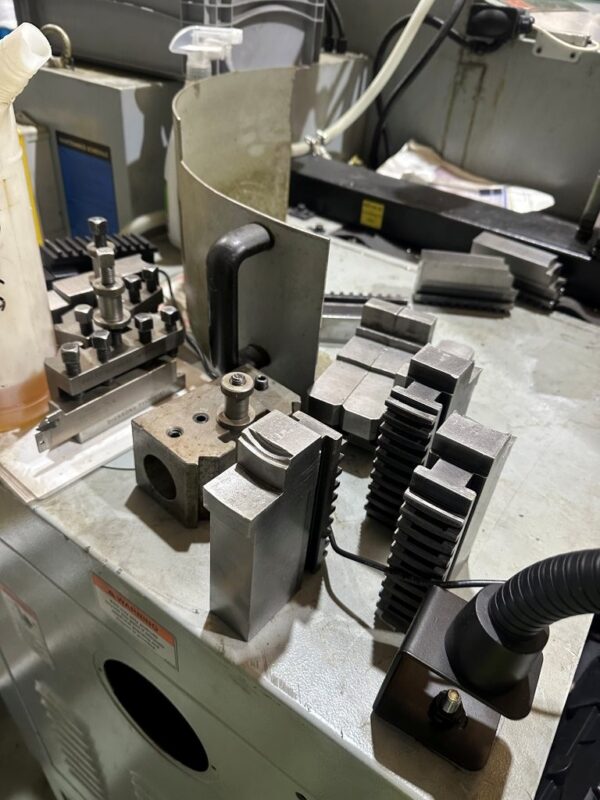

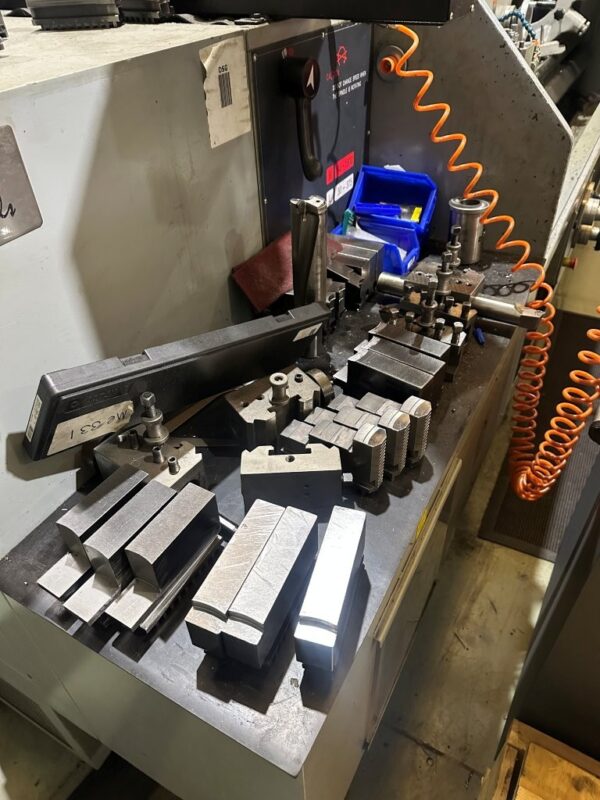

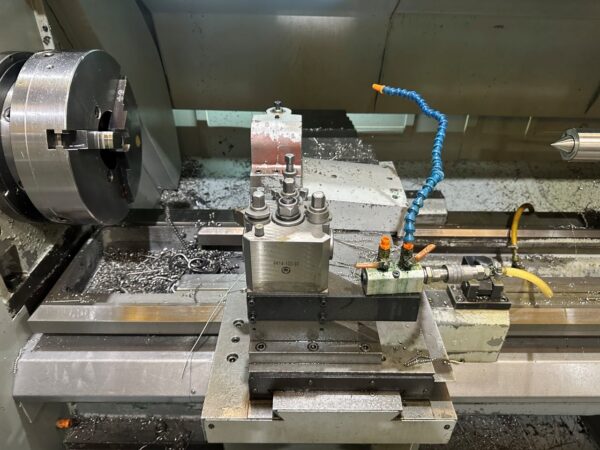

Quick-change toolpost

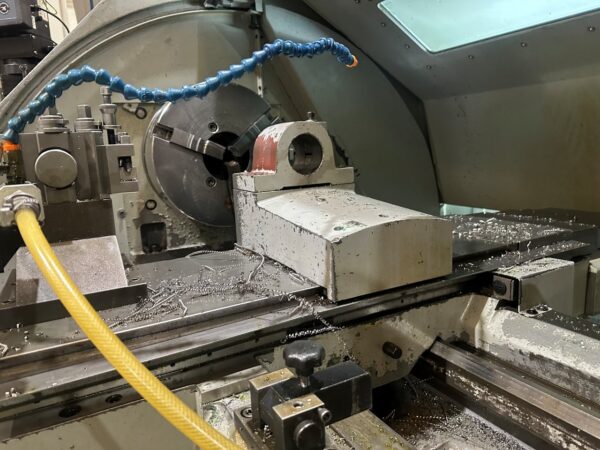

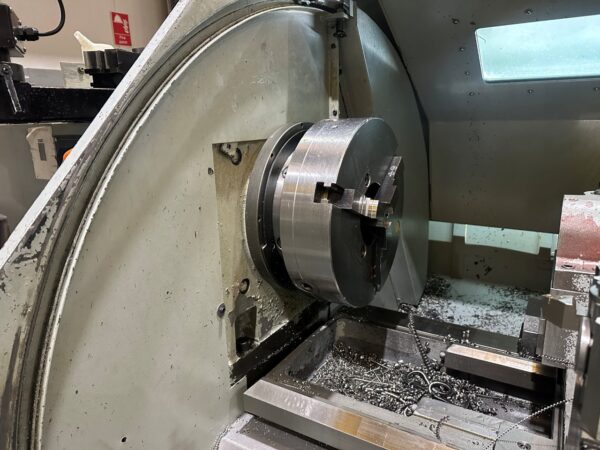

3-jaw chuck

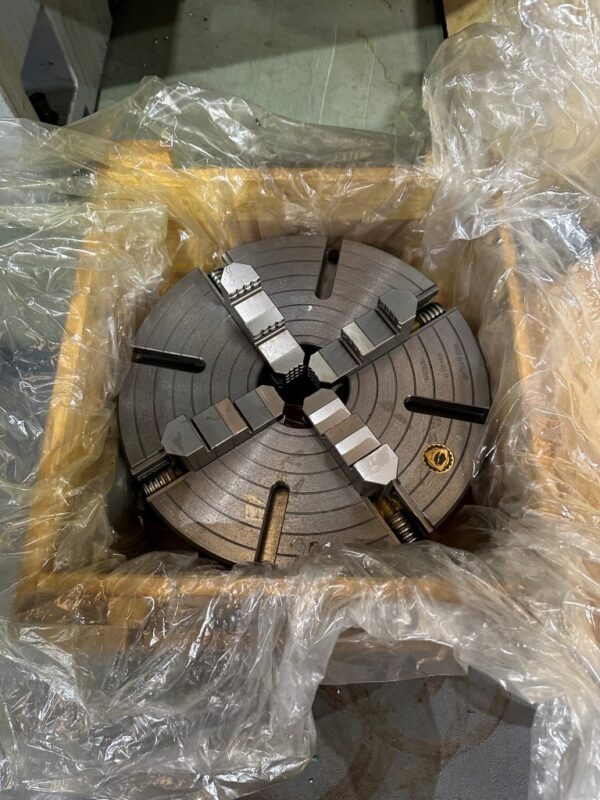

4-jaw chuck
3-point steady

Description:

The XYZ SLX 555 CNC lathe (2018) is a versatile precision turning machine designed for general and heavy-duty machining. With a 560mm swing over bed, 3m between centres, and a 104mm spindle bore, it offers excellent capacity for large components. Fitted with Protrak SLX control, steadies, drilling attachment, quick-change toolpost, and both 3-jaw and 4-jaw chucks, this machine provides flexibility and ease of use.
