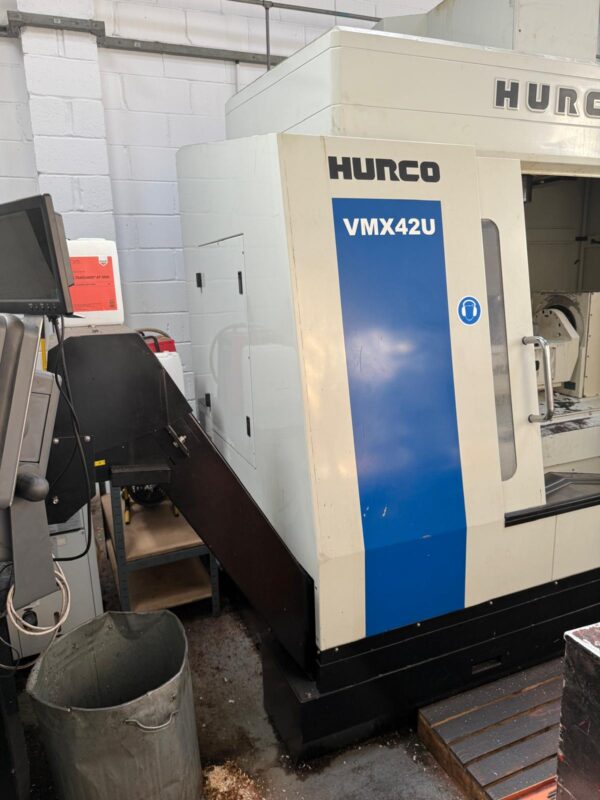

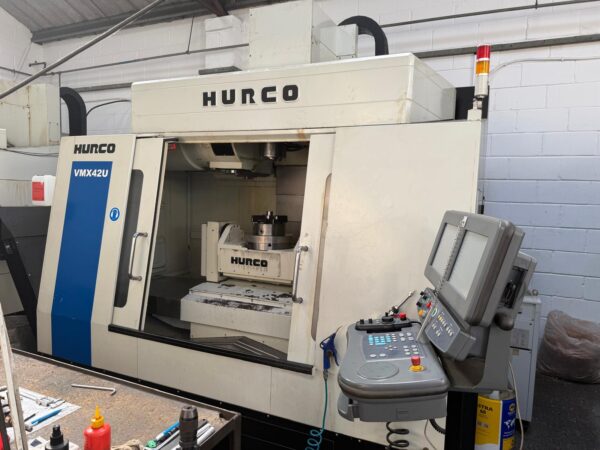

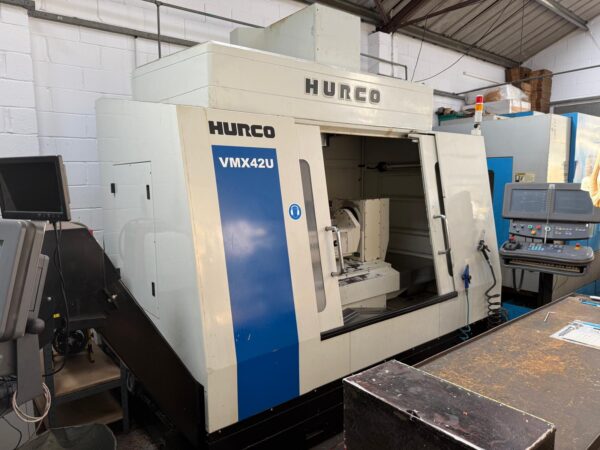

Hurco VMX42U 5-Axis CNC Machining Centre

Description

🛠️ Hurco VMX42U 5-Axis CNC Machining Centre – 2011

The Hurco VMX42U is a powerful and precise 5-axis vertical machining centre, designed for complex parts, tight tolerances, and faster cycle times. With a trunnion-style 4th/5th axis, high-speed 12,000 RPM spindle, and advanced Hurco WinMax control, this 2011 machine is fully equipped for modern manufacturing needs.

Ideal for aerospace, automotive, and high-precision industries, the VMX42U delivers simultaneous 5-axis capability, rigid tapping, through-spindle coolant, and integrated probing in a compact yet heavy-duty format.

🔧 Key Specifications:

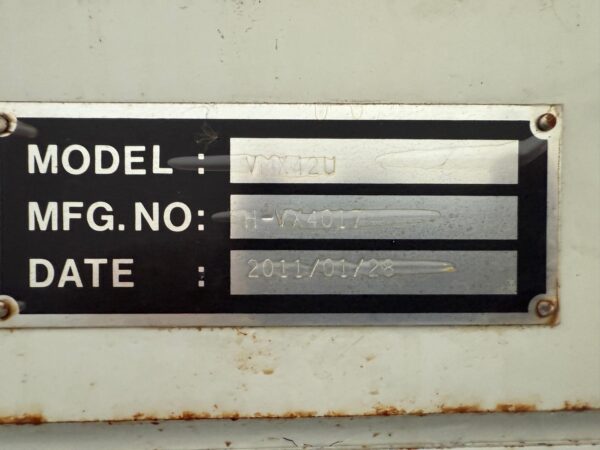

Year of Manufacture: 2011

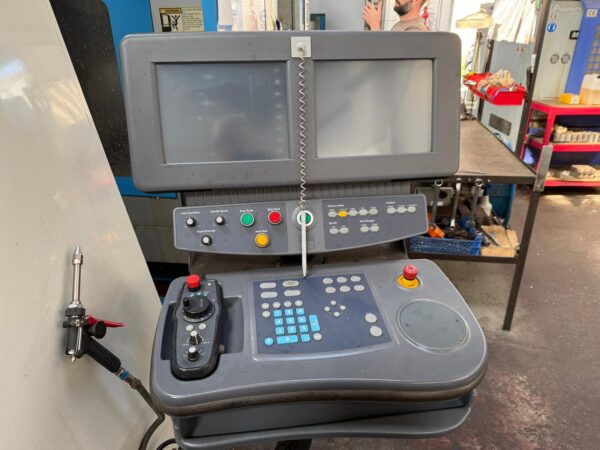

Control: Hurco WinMax with Ultimotion (Advanced Conversational + 5-Axis CNC)

Travels:

X-axis: 1,067 mm (42″)

Y-axis: 610 mm (24″)

Z-axis: 508 mm (20″)

Table Diameter: 400 mm

Table Load Capacity: 250 kg (550 lbs)

Spindle Taper/Speed: CAT/BT-40, up to 12,000 RPM

Spindle Power: 18–24 HP (13–18 kW)

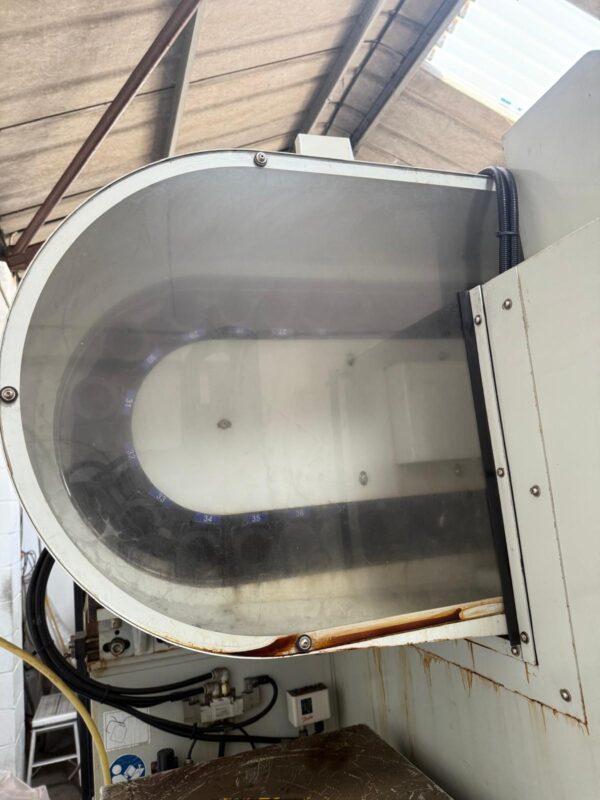

Tool Changer: 40-position Automatic Tool Changer (ATC)

C-Axis Rotation: Continuous 360°

A-Axis Rotation: −30° to +110°

Rapid Traverse Rates:

X/Y: 35 m/min (1,378 IPM)

Z: 30 m/min

✅ Machine Features:

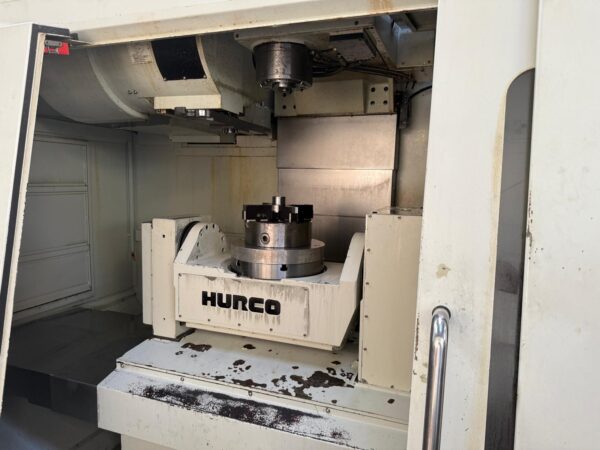

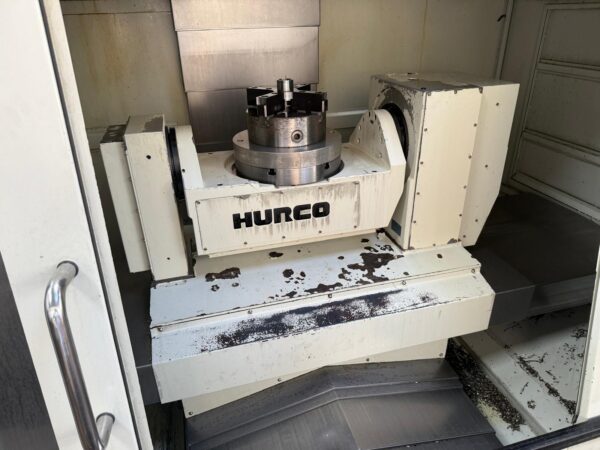

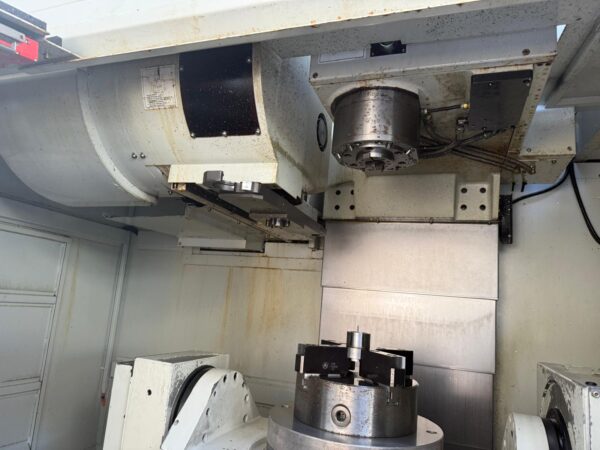

5-axis trunnion table with full contouring

Through-spindle coolant

Rigid tapping

Part probing system

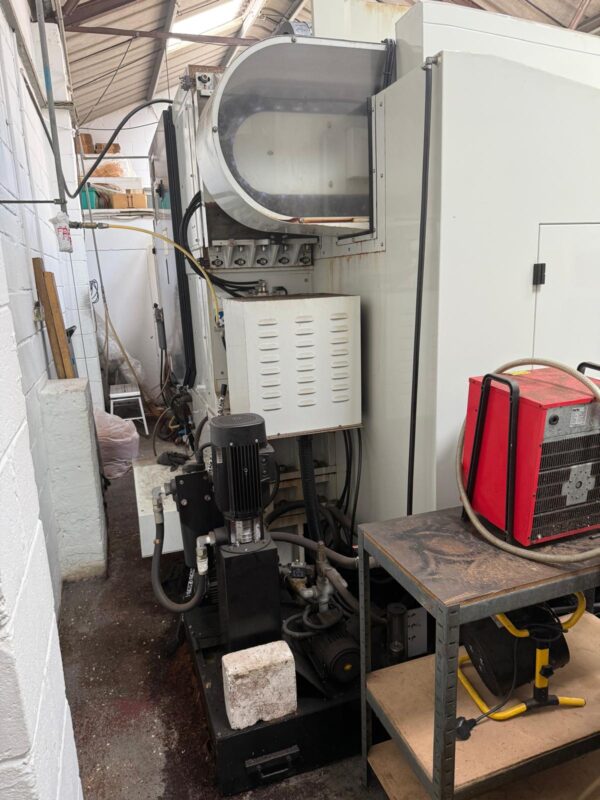

Chip conveyor

Compact footprint: 4.5 × 3 × 2.5 m

Sturdy build quality for heavy-duty machining
