Goodway GA-2800 CNC Lathe (2007)

Description

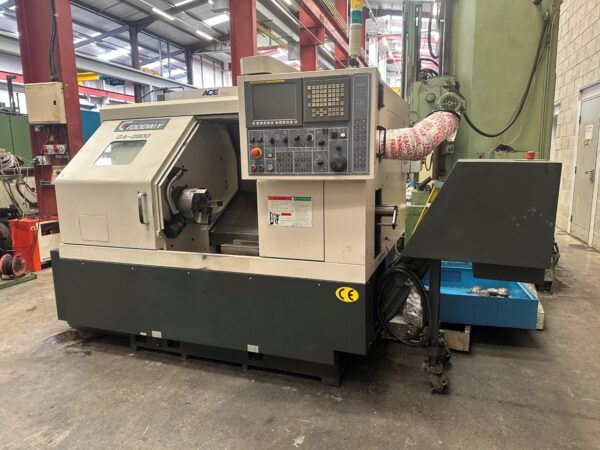

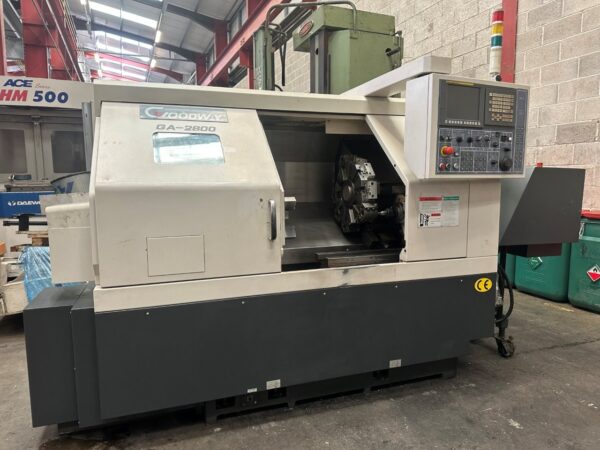

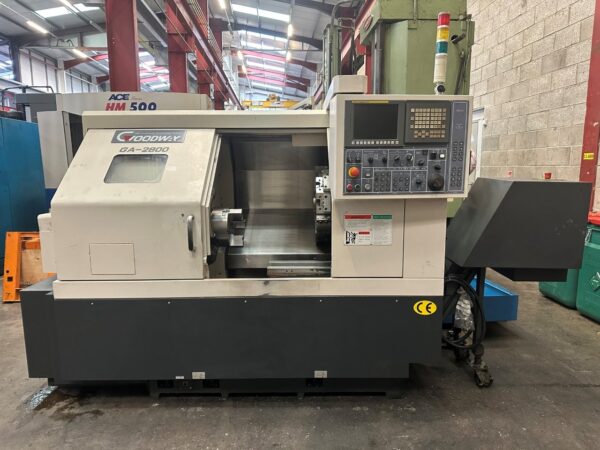

🛠️ Goodway GA-2800 CNC Lathe – 3-Jaw Chuck, Tailstock, FANUC Oi-TC, 2007

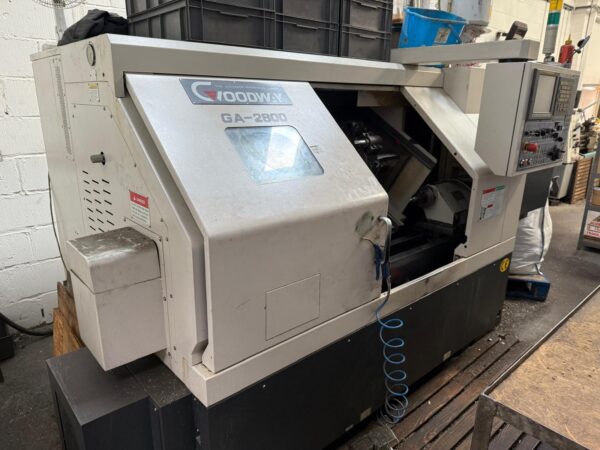

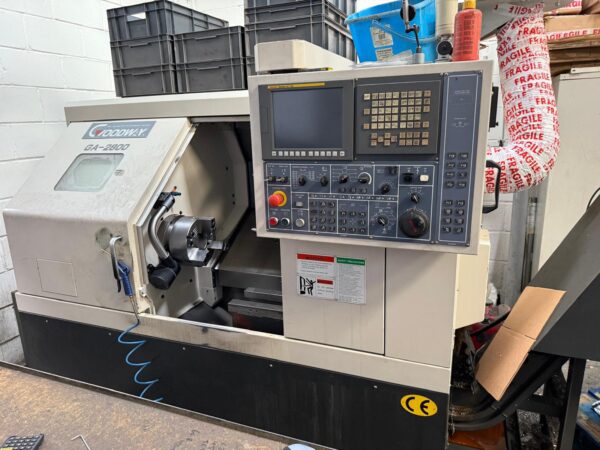

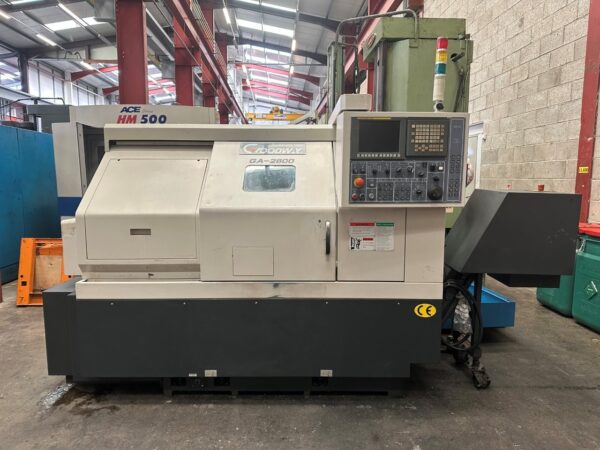

The Goodway GA-2800 is a powerful and precise CNC turning centre equipped with a FANUC Oi-TC control, box guideways, 12-station turret, and a programmable tailstock. Designed for high-rigidity turning of medium to large components, it delivers smooth performance across both short and long parts.

This machine offers excellent swing and bar capacity, making it ideal for automotive, general engineering, and sub-contract machining.

🔧 Key Specifications:

Year: 2007

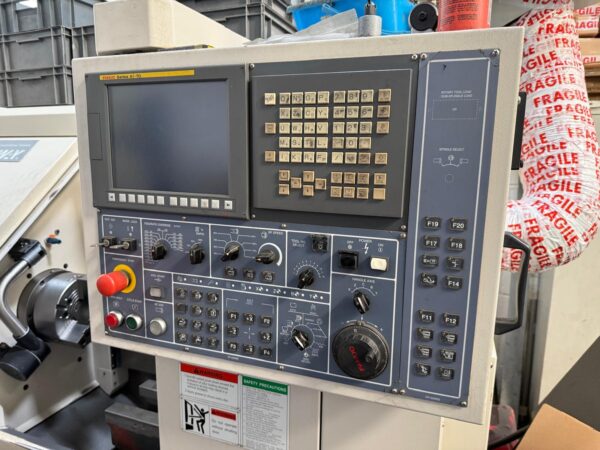

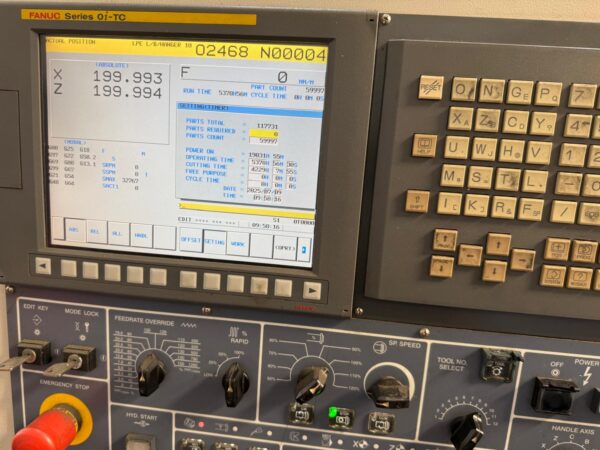

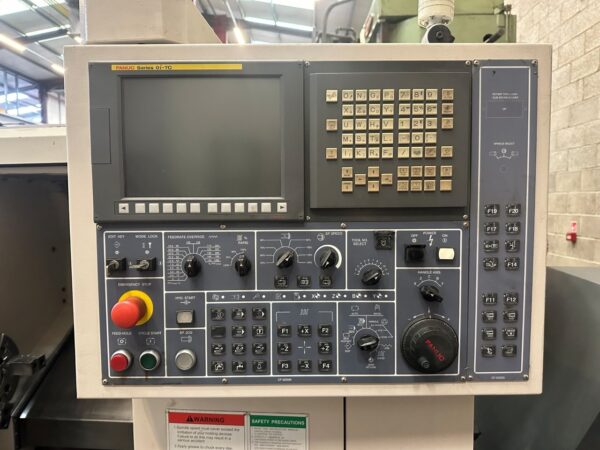

Control: FANUC Oi‑TC

Swing Diameter Over Bed: 580 mm

Swing Over Saddle: 400 mm

Max Turnable Diameter: 350 mm

Turning Lengths (Models):

C: 260 mm

M: 575 mm

LM: 1,155 mm

Bar Capacity: Ø 75 mm

Spindle Bore: Ø 90 mm

Spindle Speed Range: 35–3,500 rpm

Spindle Power: 11 kW (continuous), 15 kW (peak)

Spindle Torque: ~325 N·m (30 min rating)

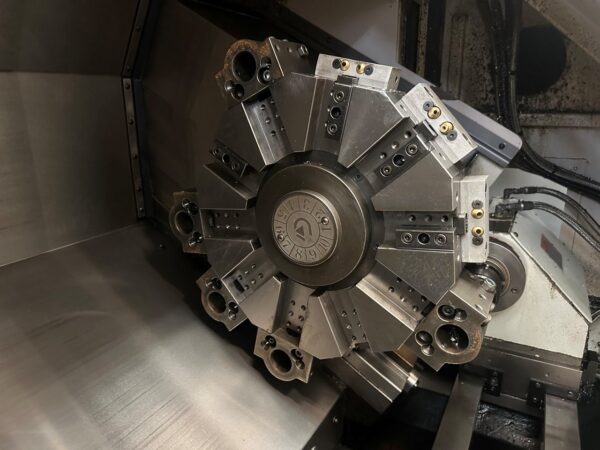

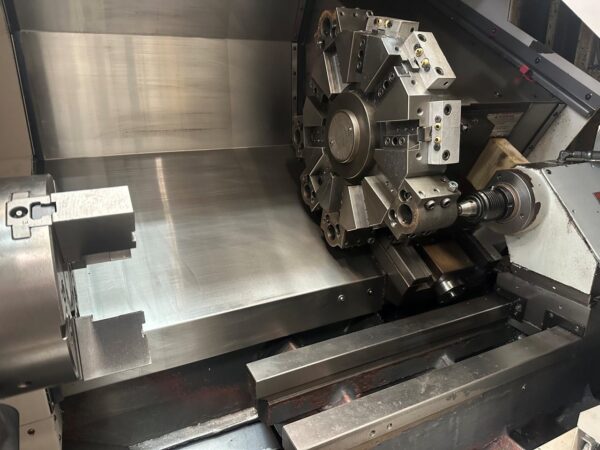

Turret: 12-station, AC-servo indexing

X-Axis Travel: 205 mm

Z-Axis Travel: up to 1,230 mm

Rapid Traverse: X = 20 m/min, Z = 24 m/min

✅ Machine Features:

Hardened and ground box guideways for long-term rigidity

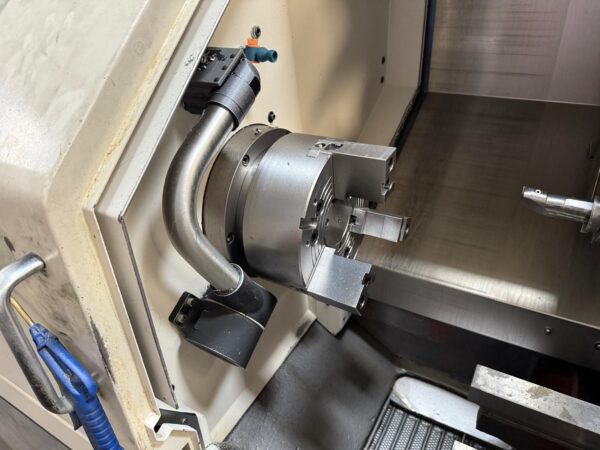

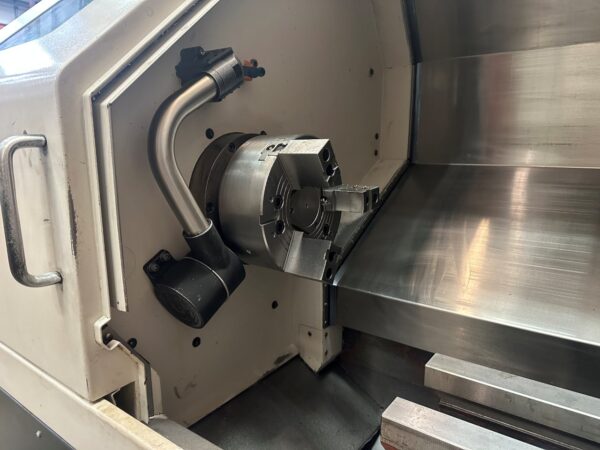

3-jaw chuck included (203 mm or 254 mm options)

Programmable tailstock with MT-4 taper

Heavy-duty construction suitable for tough materials

Ideal for small-batch and continuous production

Smooth FANUC control and AC servo turret indexing

High power-to-size ratio – 250 kg workpiece capacity

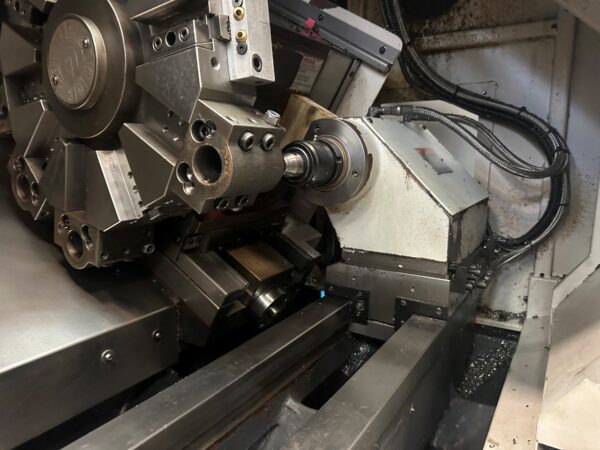

📐 Tooling & Tailstock:

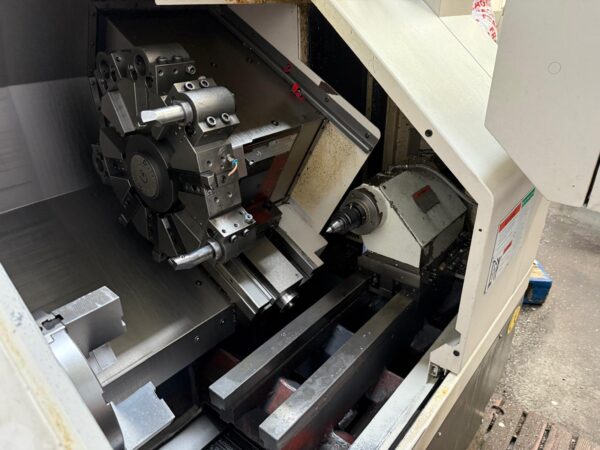

Tool Arm / Turret: 12-position AC-servo

Tailstock: Programmable base & quill

Taper: MT-4

Quill Diameter: 70 mm

Quill Travel: 150 mm
