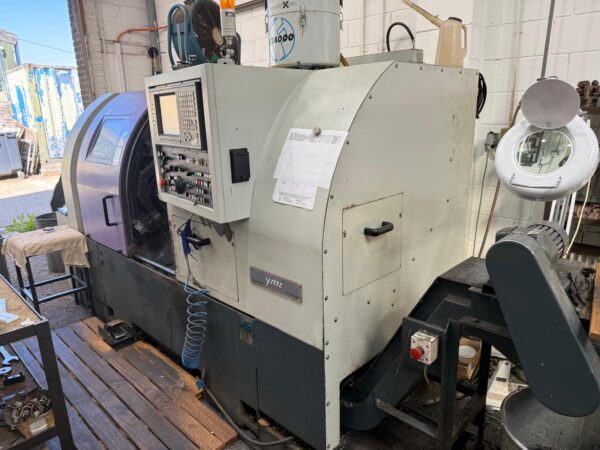

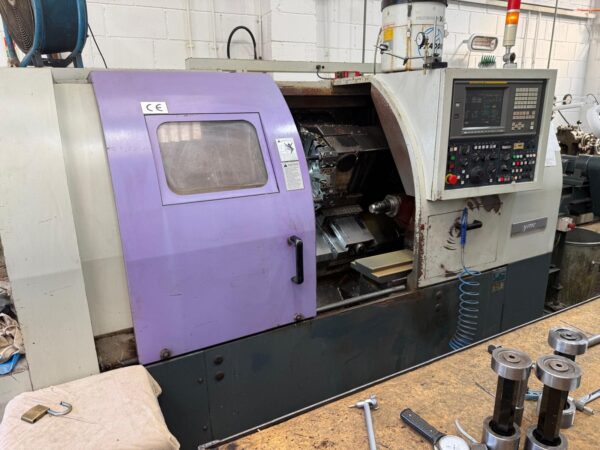

🛠️ Ecoca SJ-30 CNC Lathe – 10″ Chuck, Fanuc 18-T, Heavy-Duty Turning
The Ecoca SJ-30 is a robust, high-powered CNC lathe designed for precision turning of larger diameter components. Fitted with a Fanuc 18-T control, this machine provides the reliability and flexibility required for demanding production environments.
🔧 Machine Specifications:

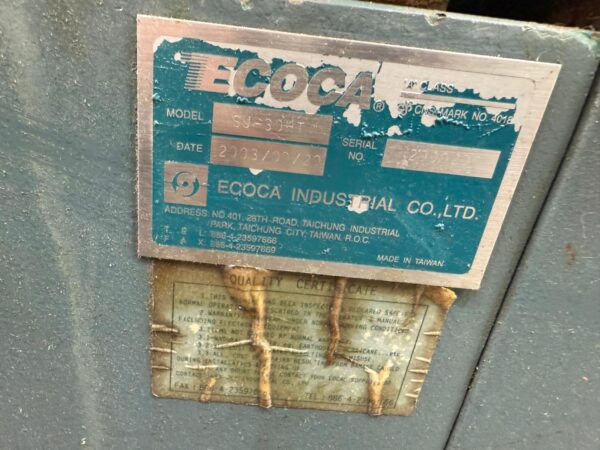

Year of Manufacture: 2003
Control System: Fanuc 18-T
Swing Over Bed: 580 mm
Swing Over Cross Slide: 434 mm
Max Turning Diameter: 280 mm
Max Turning Length: 460 mm (between centres)
Chuck Size: 254 mm (10″)
Bar Passage / Bore: 90 mm (or 75 mm – SJ-30G version)
Spindle Speed: 3,500 – 4,200 RPM
Spindle Power: 25–30 HP (18–22 kW)
Spindle Nose: A2-8
Spindle Bore: 90 mm
X-Axis Trave: 190 mm
Z-Axis Travel: 520 mm
Rapid Traverse (X/Z): 15 m/min (X), 20 m/min (Z)

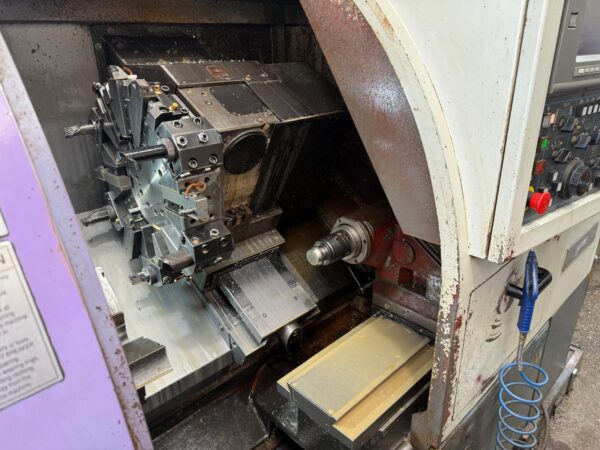

Tool Turret: 12-station, hydraulic Curvic coupling
Tailstock Quill: 90 mm diameter, MT-5 taper, 120 mm travel
Coolant Tank Capacity: 147 L
Electrical Requirement: 40 kVA, 3-phase
Machine Footprint: 4,460 mm × 1,920 mm
Net Weight: Approx. 5,000 kg
💡 Key Features:
• Heavy-duty CNC lathe with excellent stability and cutting capacity
• Fanuc 18-T control for proven reliability and user-friendly operation
• 12-station turret for flexible tooling setups
• Large spindle bore ideal for shaft and bar turning
• MT-5 tailstock for supporting long workpieces
• High-speed, high-power spindle – suitable for a range of materials and applications
