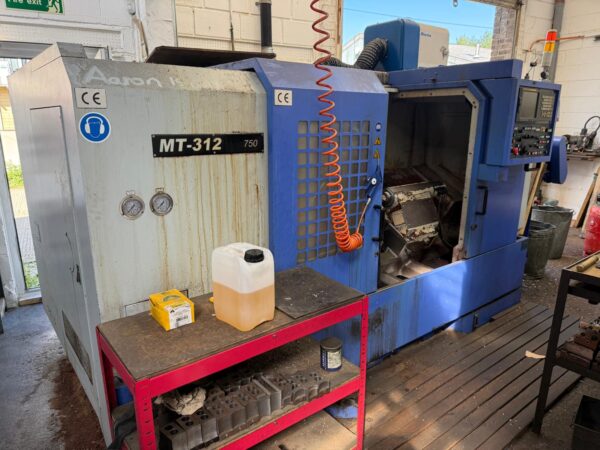

Ecoca MT-312/750 CNC Lathe

Description

🛠️ Ecoca MT-312/750 CNC Lathe – FANUC 21iTB, 12″ Chuck, 2006

The Ecoca MT-312/750 is a versatile and rigidly built CNC lathe, designed for medium to heavy-duty turning applications. With a 12″ chuck, FANUC 21iTB control, and a 12-station tool turret, this machine is ideal for precision machining of steel, alloys, and other industrial materials.

This model offers excellent turning capacity and reliable performance for job shops and subcontract machining.

🔧 Machine Specifications:

Year: 2006

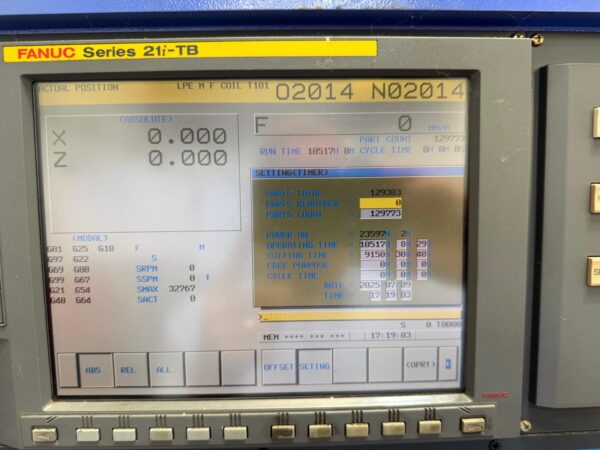

Control: FANUC 21iTB

Chuck Size: 12″ (305 mm) – 3-Jaw

Swing Over Bed: 600 mm

Swing Over Cross Slide: 330 mm

Max Turning Diameter:

Over Bed: 450 mm (17.7″)

Over Cross Slide: 330 mm (12.99″)

Z-Axis Travel (Turning Length): 730 mm (28.74″)

Spindle Power: 24.8 HP (18.5 kW)

Spindle Speed: Up to 3,200 RPM

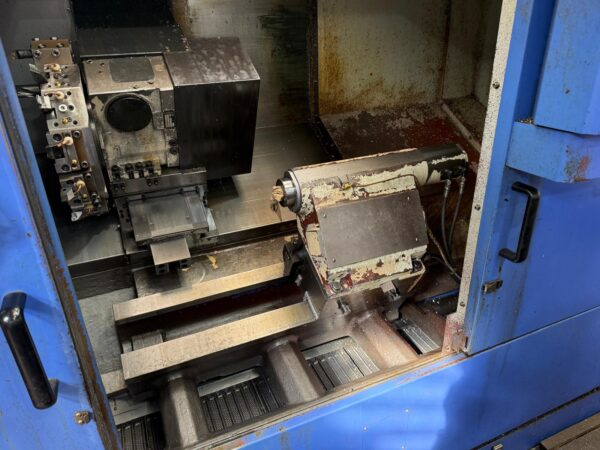

Tool Turret: 12-station

Tailstock: Included

Tool Arm: Included

💡 Key Features:

Rigid design for stability in heavy cutting

Powerful spindle for demanding applications

FANUC 21iTB CNC – reliable and widely supported

12-station turret for flexible tooling setups

Suitable for small-batch production and repeat work

Ideal for subcontractors and precision machinists

📐 Typical Applications:

General subcontract CNC turning

Small-to-medium batch production

Shaft, flange, and component machining

Steel, alloy, and aluminium turning
