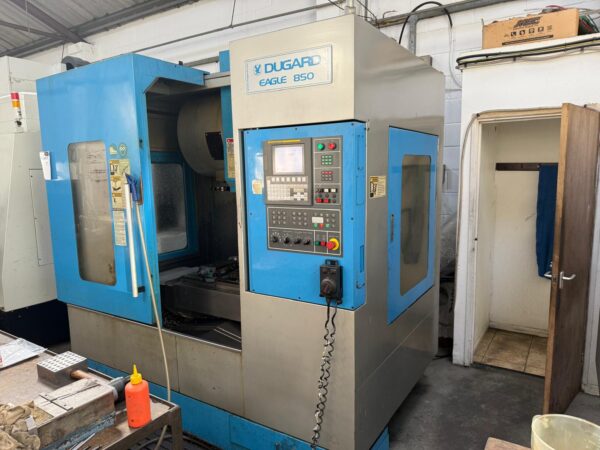

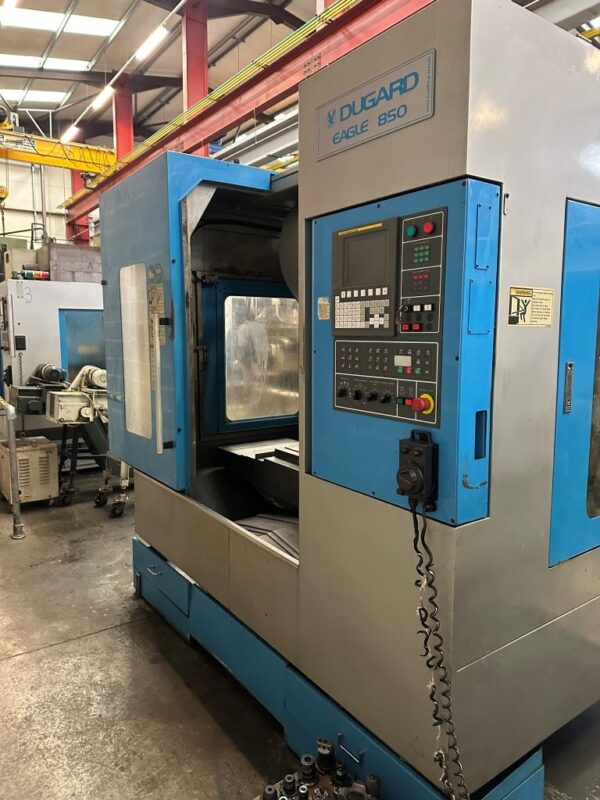

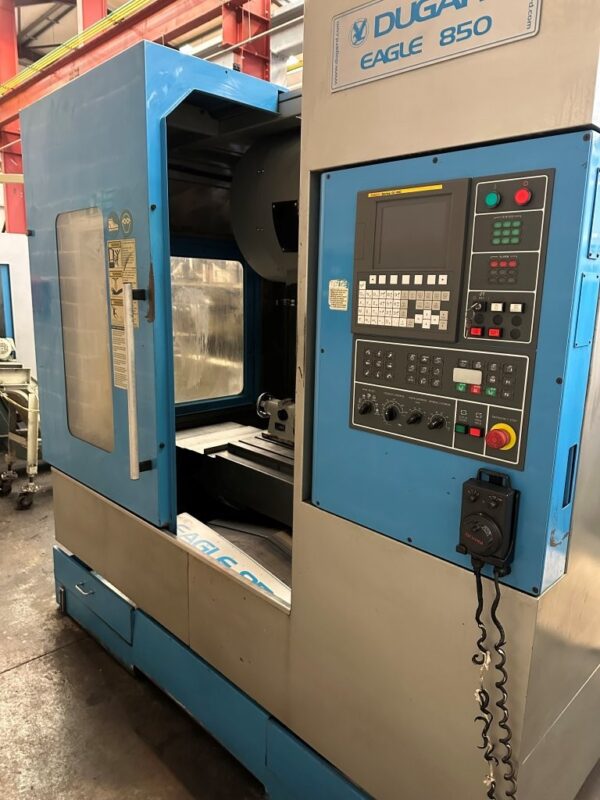

Dugard Eagle 850 CNC Vertical Machining Centre

Stock:

Available!

Request Quote

    WhatsApp

    Description

    🛠️ Dugard Eagle 850 CNC Vertical Machining Centre – 4th Axis, Fanuc Oi, 2011

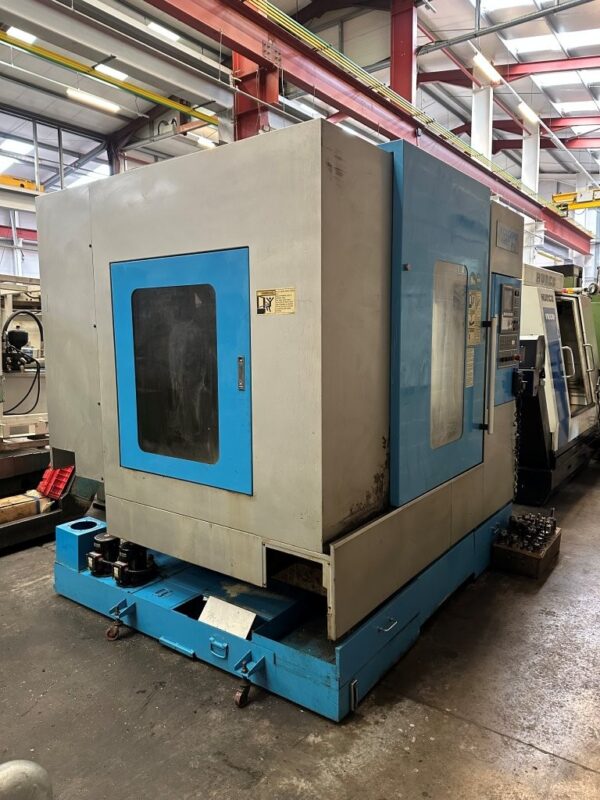

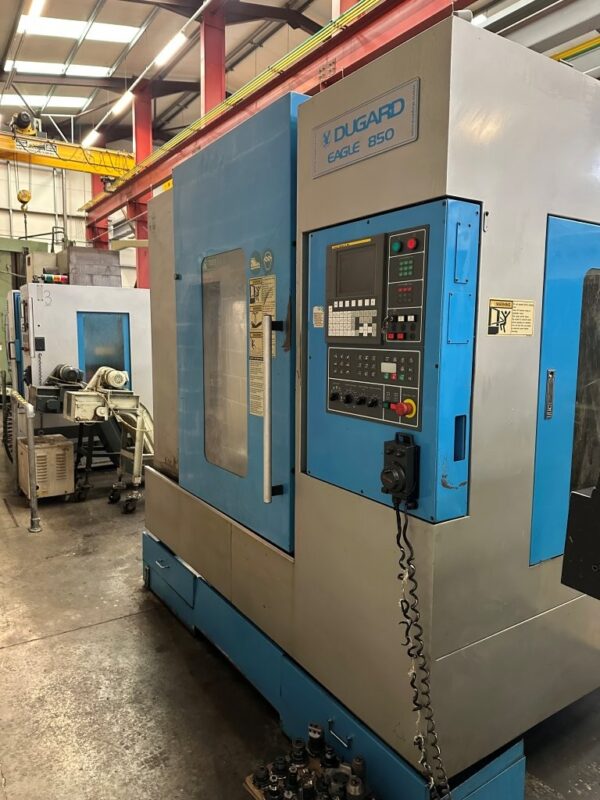

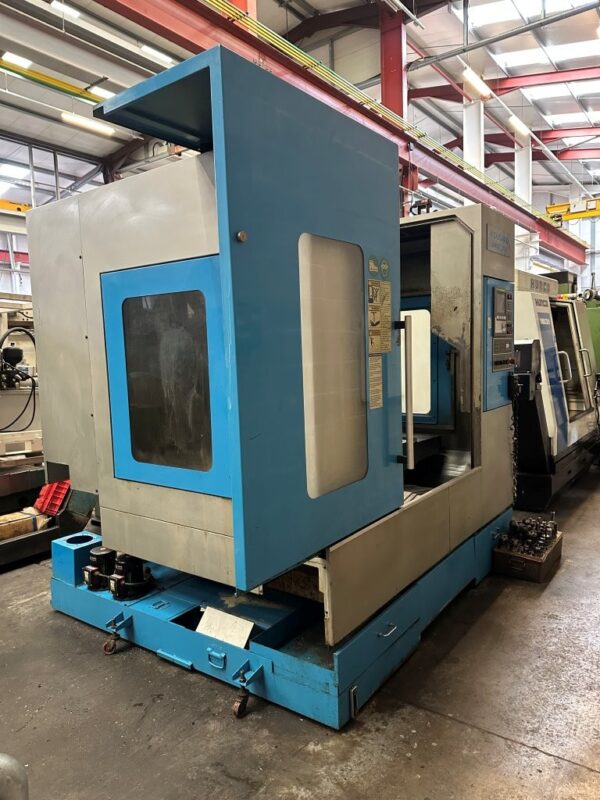

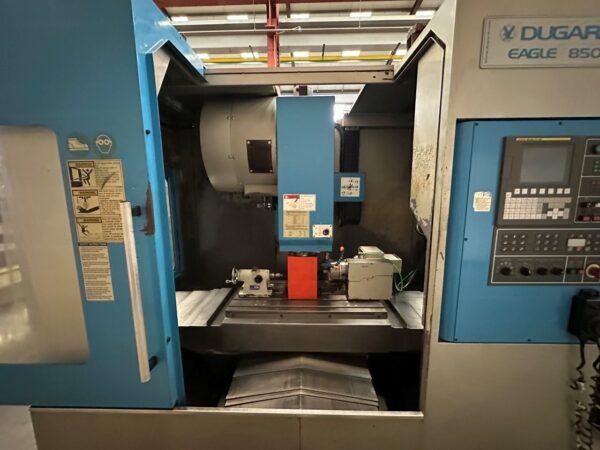

    The Dugard Eagle 850 VMC is a compact yet robust CNC machining centre equipped with Fanuc 0i-MD control, a 4th axis and tailstock, and 24-tool ATC. This 2011 machine is built for versatility and precision, ideal for sub-contract engineering, tooling, and general component production.

    With BT40 spindle taper, up to 8,000 RPM, and a rigid cast frame, the 850 is a proven performer for small to medium-sized machining jobs.

    🔧 Key Specifications:

    Year: 2011

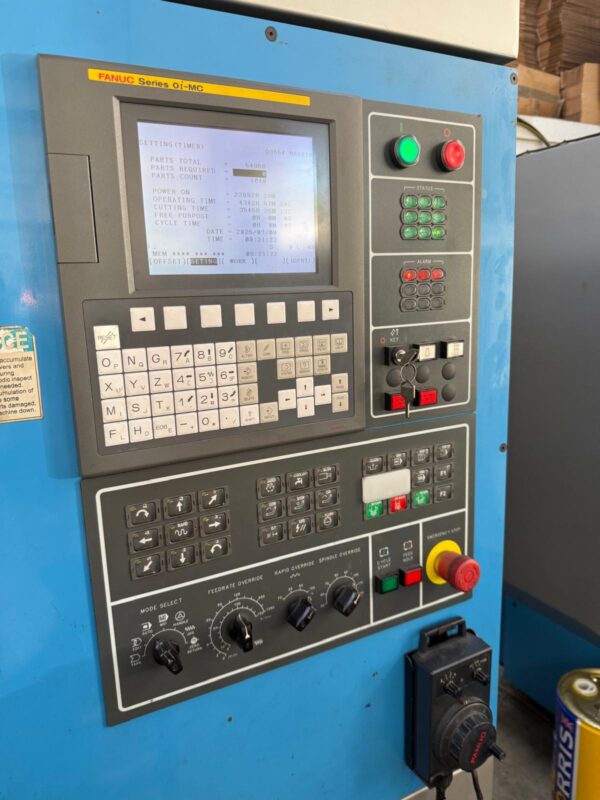

    Control: Fanuc 0i-MD

    Travels (X/Y/Z): 850 × 520 × 510 mm

    Table Size: 1,000 × 510 mm

    Max Table Load: 500 kg

    Spindle Taper: BT40

    Spindle Speed: 80–8,000 RPM

    Spindle Power: 11 kW continuous / 15 kW peak

    Toolchanger: 24-tool carousel ATC

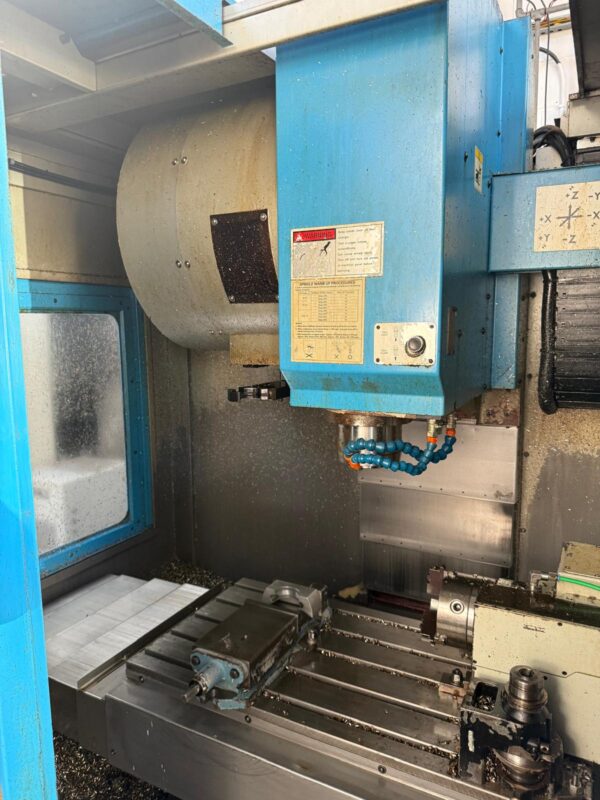

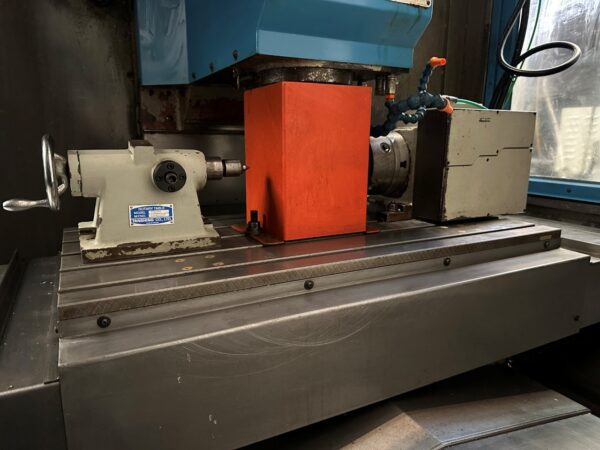

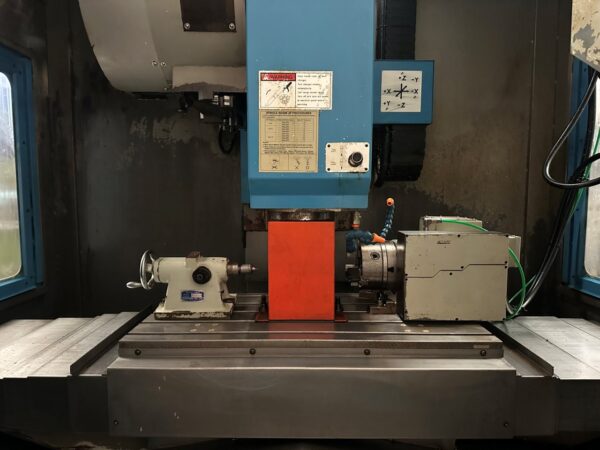

    4th Axis & Tailstock: Included

    ⚡ Feed Rates & Performance:

    Rapid Traverse (X/Y/Z): 30 / 30 / 24 m/min

    Cutting Feedrates: Up to 10,000 mm/min

    ✅ Machine Features:

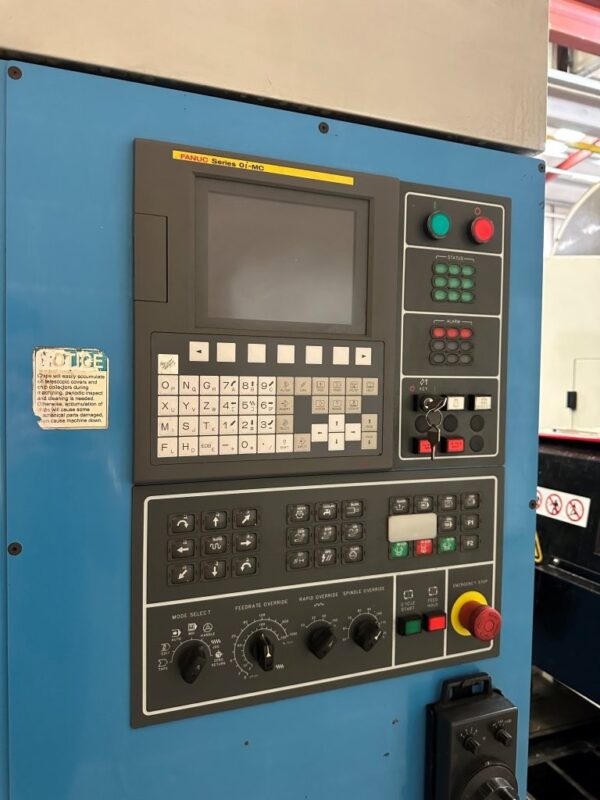

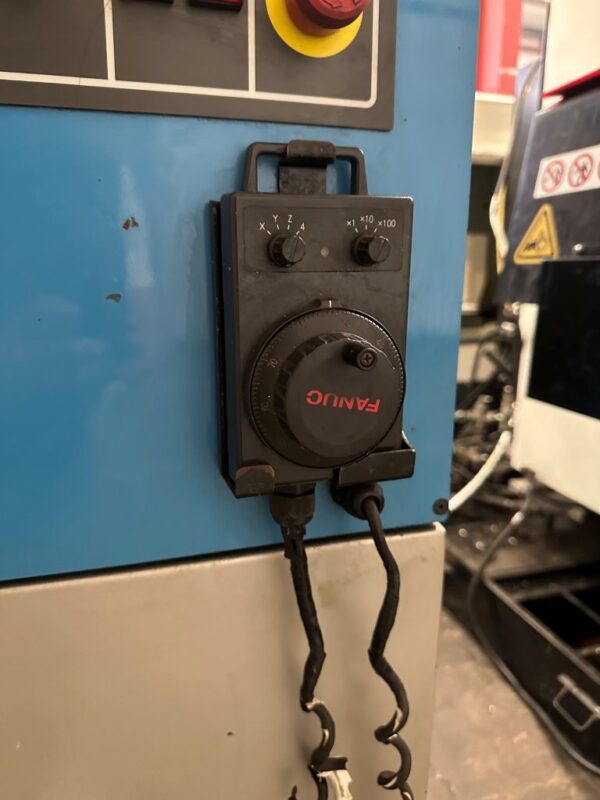

    Fanuc 0i-MD control with conversational programming

    Rigid, high-quality frame for excellent surface finish

    Includes full 4th axis and tailstock

    24-tool automatic toolchanger

    High-speed rapids for faster positioning

    Compact footprint with excellent work envelope

    📐 Machine Dimensions:

    Footprint: Approx. 2.30 × 2.12 × 2.58 m

    Weight: Approx. 5.5 tonnes
