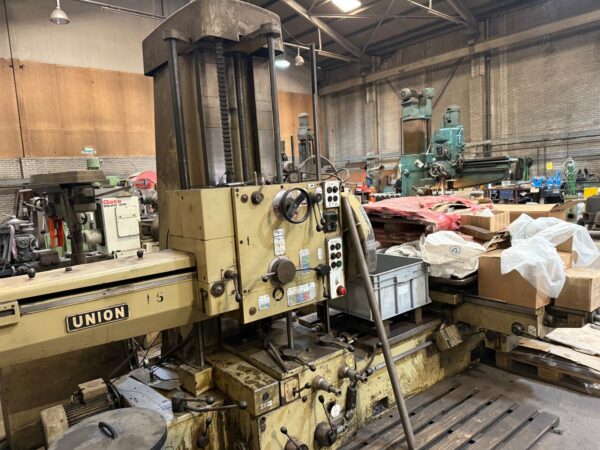

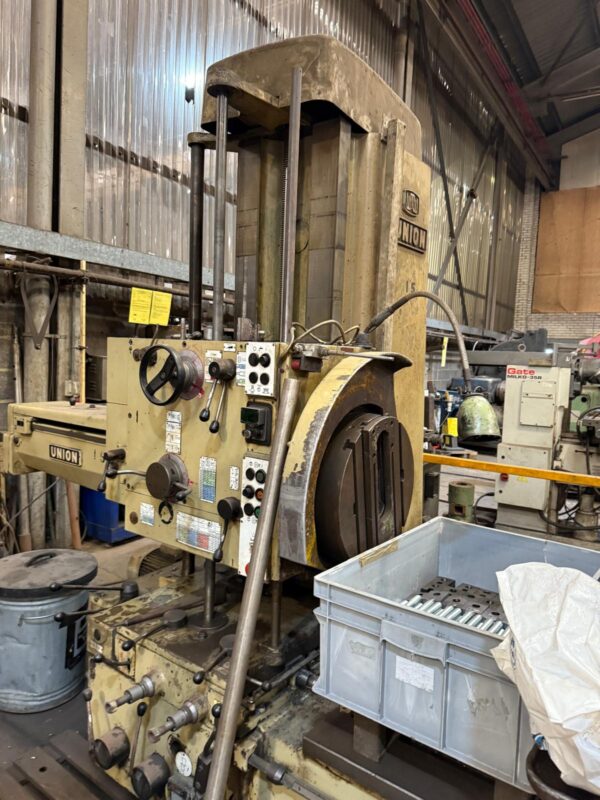

UNION BFT 80/2 Horizontal Borer

Description

🛠 UNION BFT 80/2 Horizontal Borer

High-precision horizontal boring machine designed for heavy-duty machining with excellent stability and table capacity. Ideal for milling, drilling, boring, and facing operations.

🔧 Capacity
Working Spindle Diameter 80 mm
Tool Holder MT-5 (Morse Taper 5)
Face Plate Diameter 500 mm
Spindle Travel 710 mm
Spindle Speed Range 8 – 1,250 rpm
Facing Head Speed 8 – 200 rpm
Vertical Travel (Z-axis) 1,000 mm
Longitudinal Travel (Y) 1,600 mm
Cross Travel (X) 1,000 mm
Rotary Table 360°
Table Size 1,000 × 1,120 mm
Table Load Capacity 2,500 kg
Digital Read-Out 3-axis DRO (Digital Readout)

🧾 Machine Data

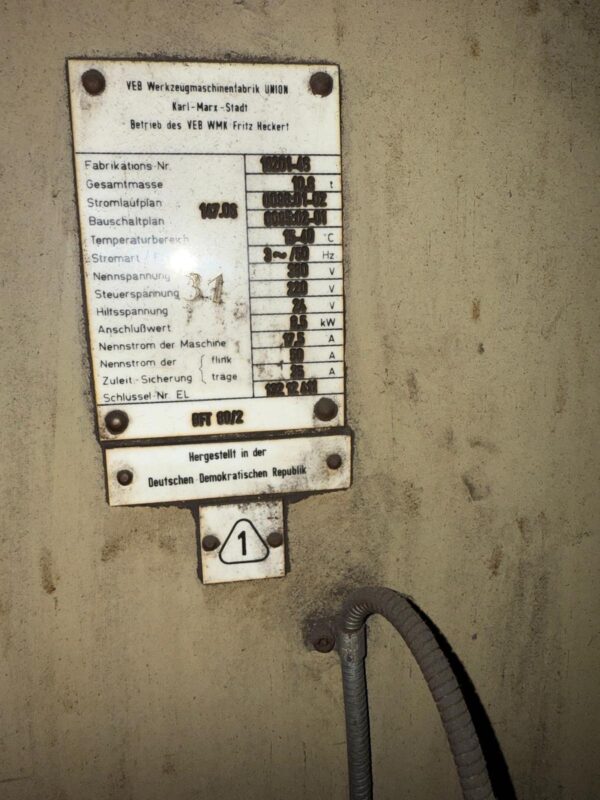

Serial Number 18201-46
Total Weight Approx. 10 tonnes
