Lapointe HP 30 Broaching Machine

Stock:

Available!

Description

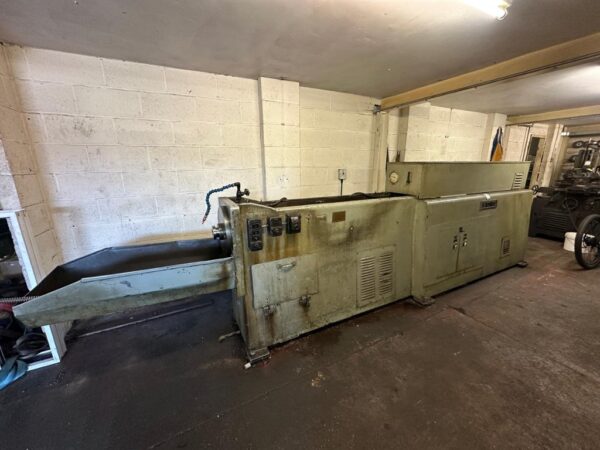

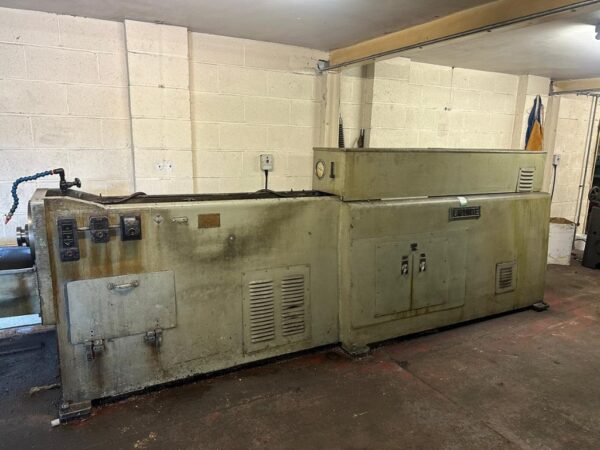

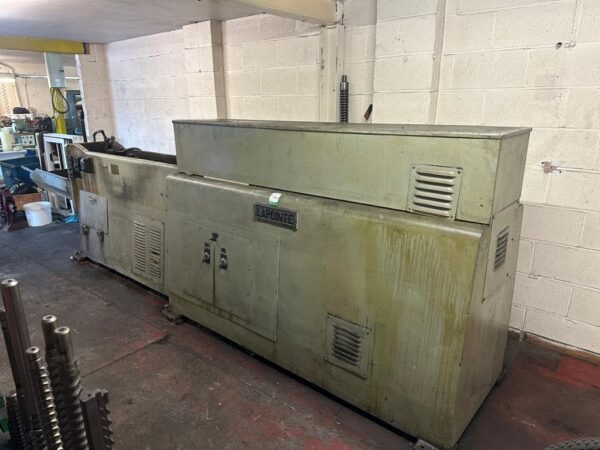

🧰 Lapointe HP 30 Horizontal Hydraulic Broaching Machine – 15T Pull, 52″ Stroke, 20HP Power Unit

This Lapointe 52″ Stroke Horizontal Hydraulic Broaching Machine is a robust industrial solution for internal broaching of keyways, splines, and precision profiles. With a pulling capacity of up to 15 tons, this machine delivers reliable power and repeatable results for high-production environments. Its hydraulic system provides variable cutting speeds, a smooth return cycle, and consistent broach performance.

✅ Key Specifications:

Broach Pulling Force Approx. 15 tons (30,000 lb)
Stroke Length 52″ (1,320 mm)
Cutting Speed, Variable, approx. 2–20 ft/min
Return Speed, Up to 80–100 ft/min
Power Unit, 20 HP Hydraulic Motor (~15 kW)
Oil Tank Capacity, 94 gallons (≈355 L)
Coolant Tank, 34 gallons (≈129 L)
Machine Dimensions, Approx. 5,100 mm (L) × 670 mm (W) × 1,450 mm (H)
Machine Weight, Approx. 4,000 kg
