Description

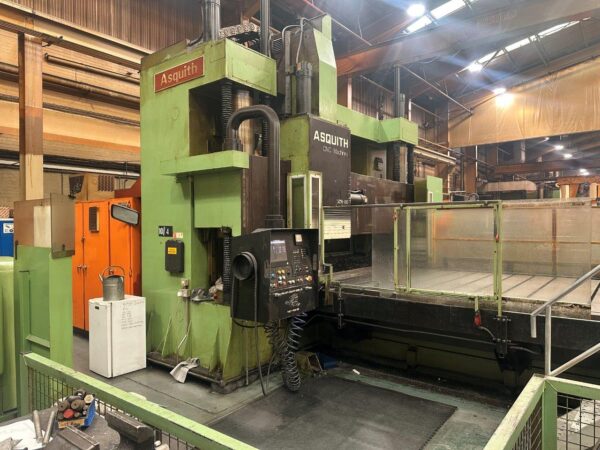

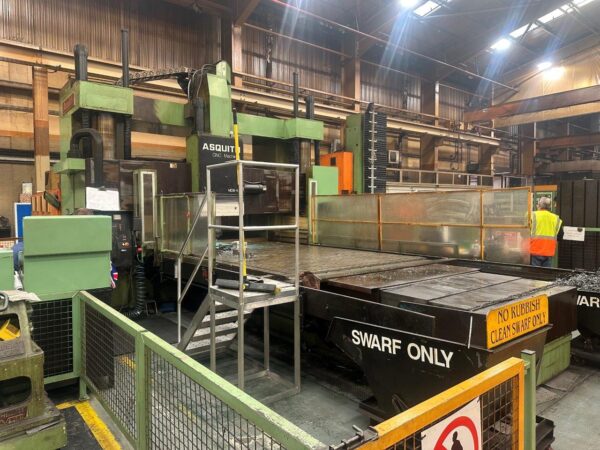

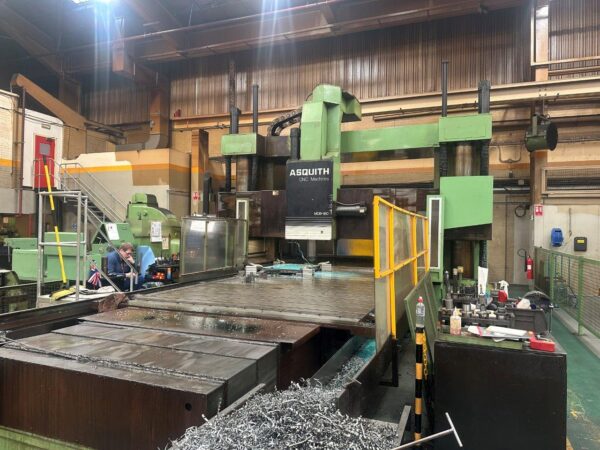

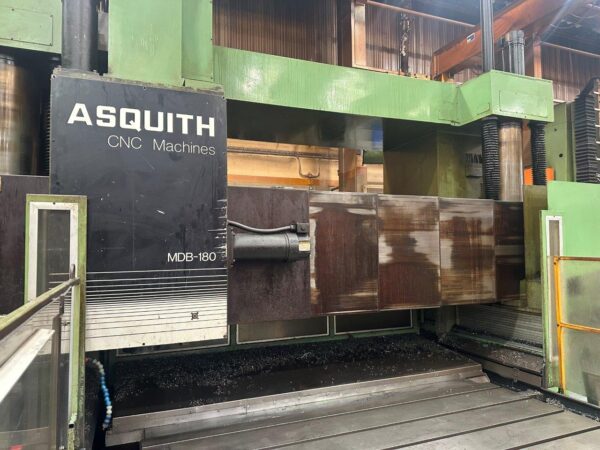

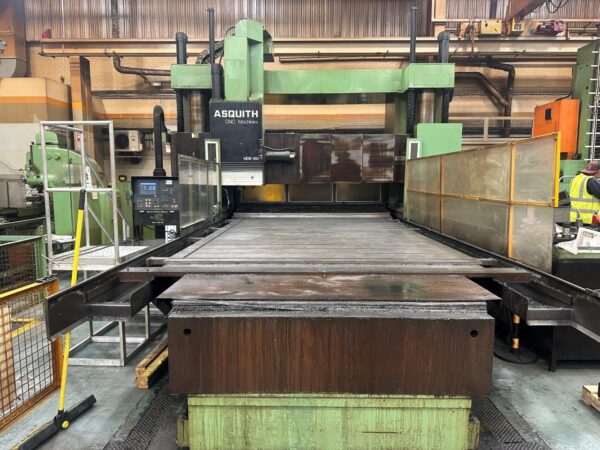

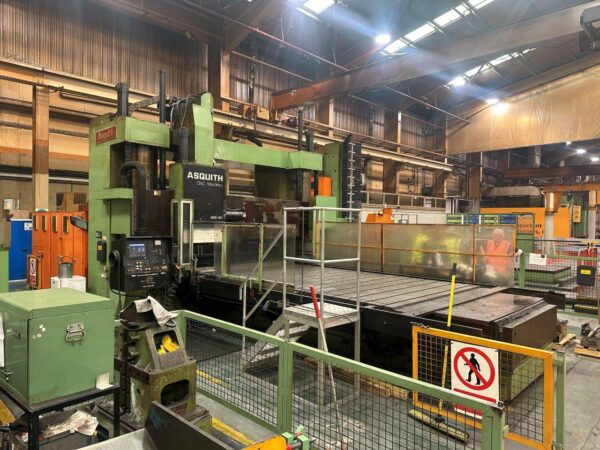

Asquith VNCT MDB 180 Elevating Rail CNC Gantry Mill

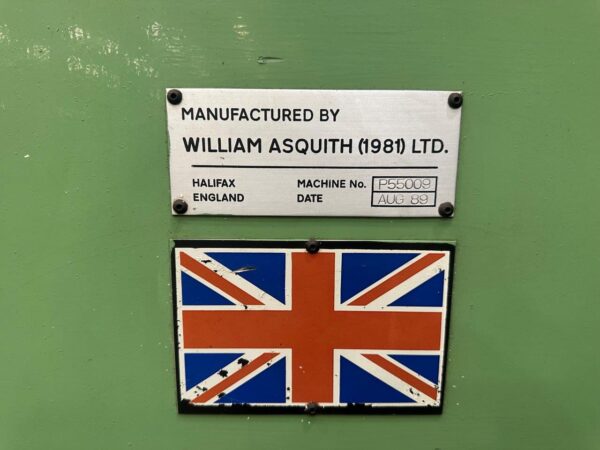

Delivery date February 1989

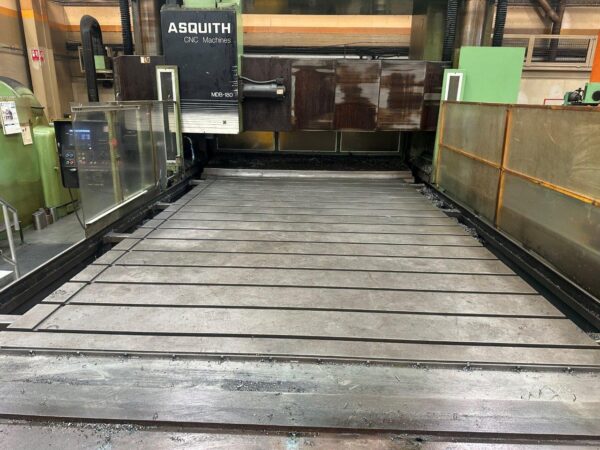

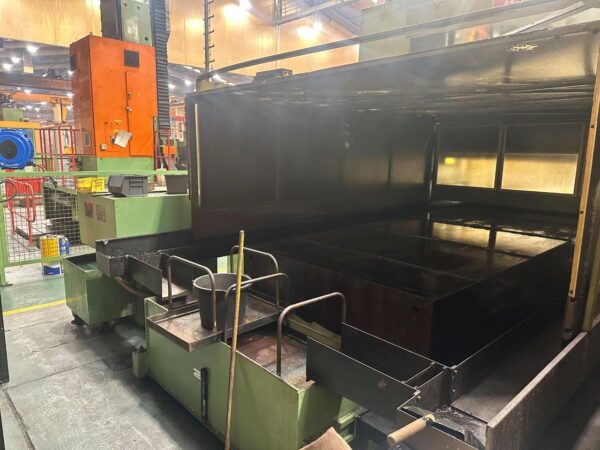

Table size 4000mm( X axis ) X 2500mm ( Y axis )
X travel 4000mm
Y travel 2500mm
Z travel ( ram ) 400mm
W travel ( elevating Beam ) 1000mm
Max admittance ( Z retracted, W at top of stroke) 1200mm
Spindle power 40 KW
Spindle speed 20-2000RPM
50 iso taper

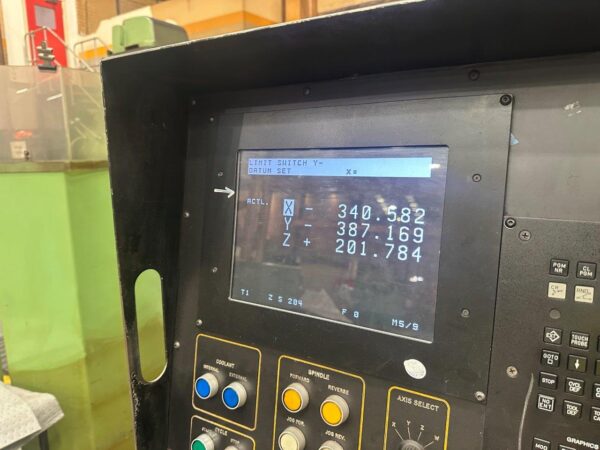

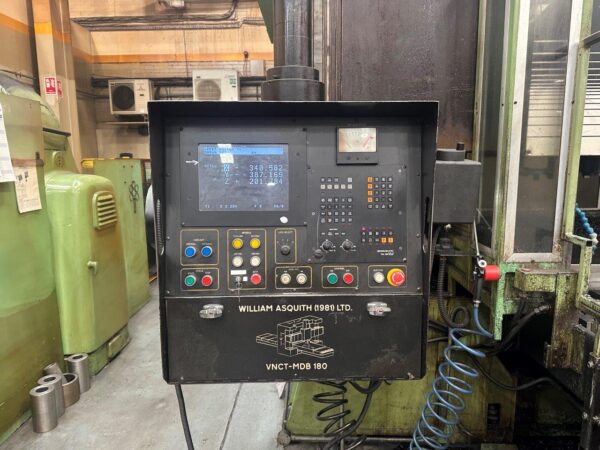

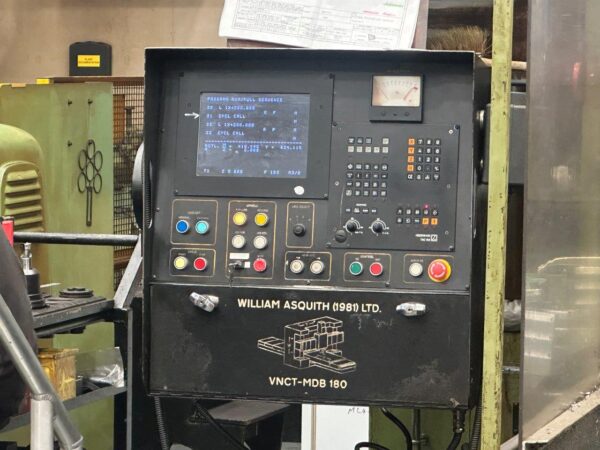

Control Heidenhain TNC155

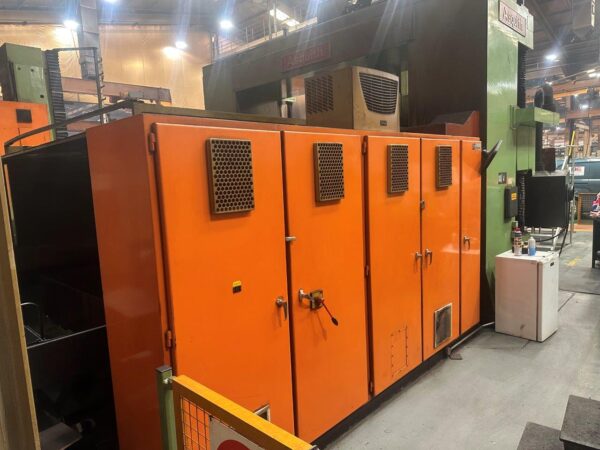

Supply 415v 3 ph 150A 50 Hz

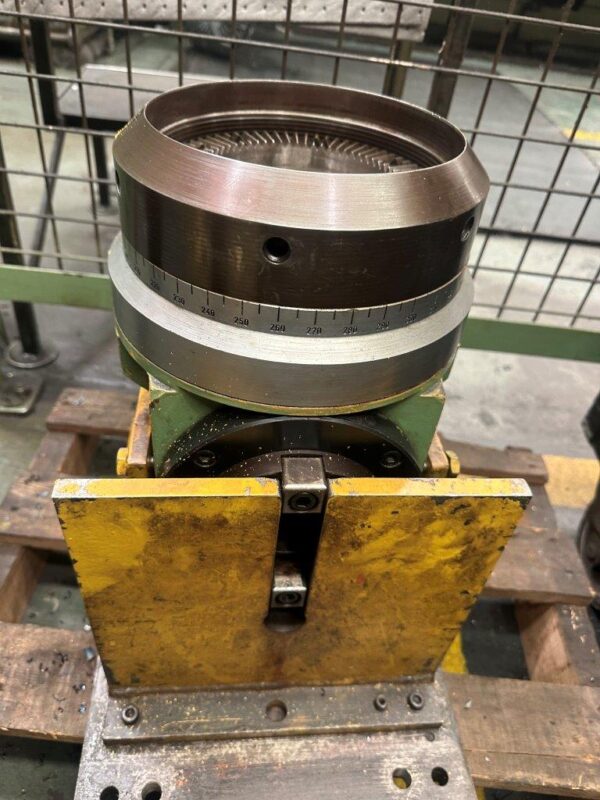

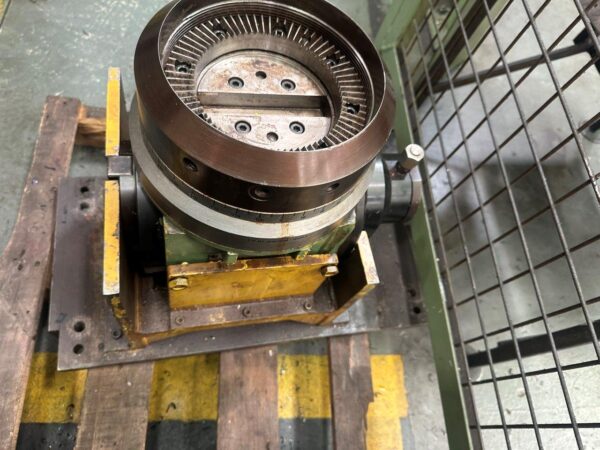

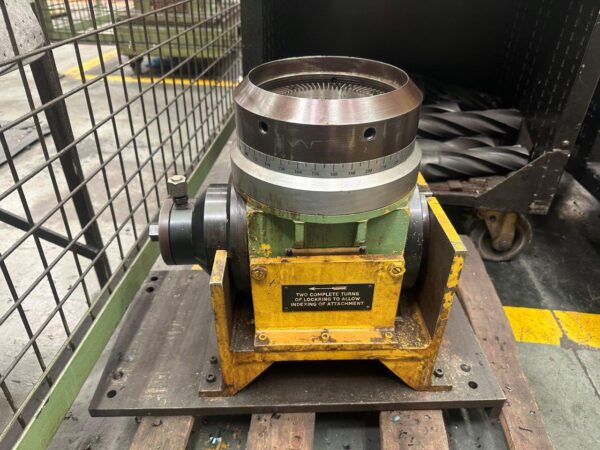

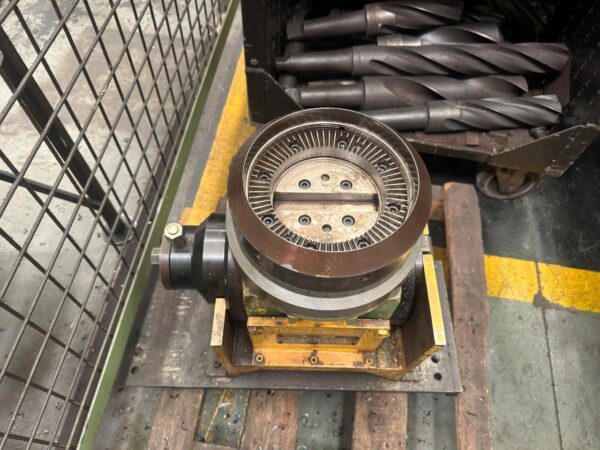

Right angle milling head

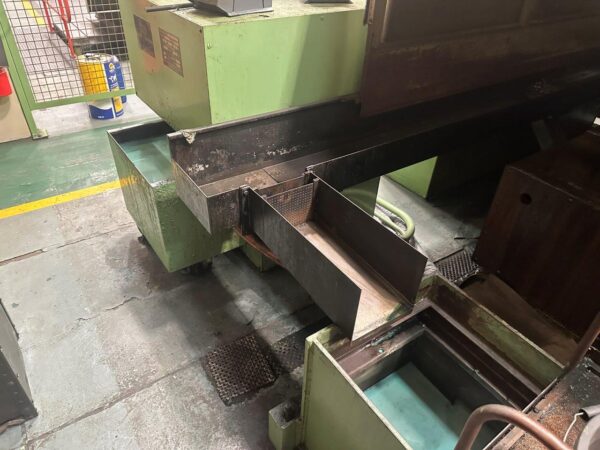

Flood and through spindle coolant
