Arboga Geared Head Drill A2608 – 25mm
Arboga Model A2608 – 25mm Capacity,
No 3MT Geared-Head, Manual-Feed Pillar Drill.
With 8 spindle speeds 105 – 2900rpm, and forward/reverse facility.
Complete with 500 x 400mm T-slotted table,
135mm spindle/quill movement,
360º rotation of the drill-head about the column,
H.M TAS Belt Grinders
From Denmark the popular TAS range of TAS 75/150mm wide Belt Grinders. Now with an electronic braking system, 5 years motor warranty, and optional two-point integrated dust extraction
H.M Folding Machines
From Denmark, high quality hand-operated, treadle, semi-automatic and powered folding machines, from 650mm – 3000mm in capaci
Manual & Pneumatic Guillotines
H.M Manual & Pneumatic Guillotines
From Denmark hand-lever, treadle, and pneumatic guillotines with capacities from 650mm – 2000mm
H.M New JBS Motorised Guillotines
New Danish modern design powered mechanical guillotines with innovative cut-piece “return to operator” feature, rack & pinion back-gauge, strip-lighting, rear light-guarding, and capacities; 1250 x 3/4mm & 2000mm x 2/3mm.

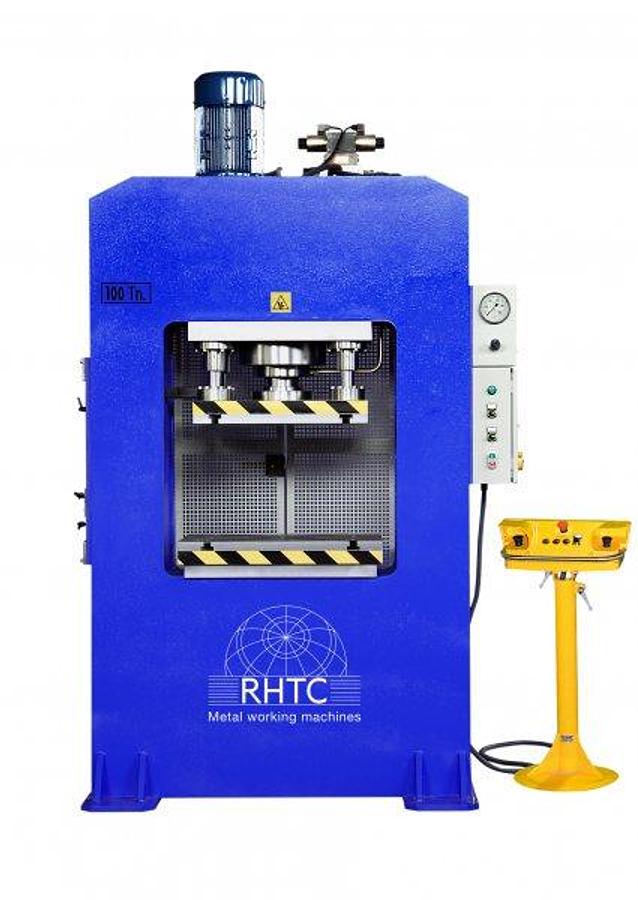

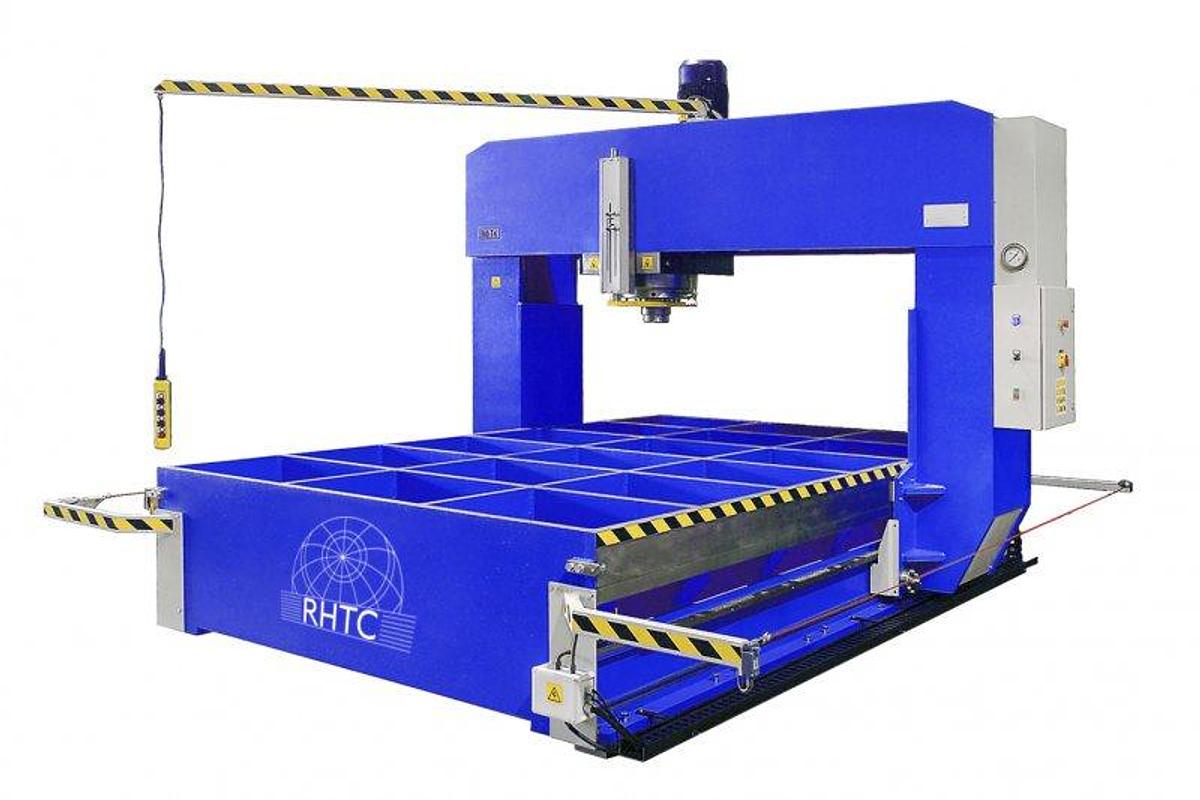

These hydraulic presses from RHTC are built with an electro-welded solid-arch monoblock structure and designed to amply support the stresses to which they are subjected. They are especially indicated to carry out efficacies like stamping, punching and pressing.
These motorized solid-arch hydraulic presses incorporate limit switches installed on the side of the machine that allows us to comfortably adjust the cylinder stroke. All these presses are equipped with a lower table with T-shaped grooves and are driven by solenoid valves, including a non-return valve, a pressure-relief valve and a decompression valve for the cylinder. The motorized solid-arch hydraulic presses from RHTC are equipped with a double-acting cylinder with an upper table with machined T-shaped grooves and two-side cylindrical guides and designed with a pressure regulator on the front of the press.
These hydraulic presses contain a motorized hydraulic unit with two-speed automatic disconnection of the faster speed and are driven by a two-hand push button with a Level IV security module. The electrical board of these production press has a selector for manual or automatic operation and a selector for one or two cylinder speeds.
All models are supplied with a manometer in tons, hydraulic oil and an
instruction manual. Our RHTC presses comply with CE standards and work with a hydraulic pressure lower than 320 bar to guarantee a greater durability of the presses. We guarantee a high quality of these motorized solid-arch hydraulic presses and therefore these machines have a warranty of 2 years. The standard models are available in six different strengths, ranging from 80 TN to 500 TN.
Please contact our sales team for technical specifications and pricing

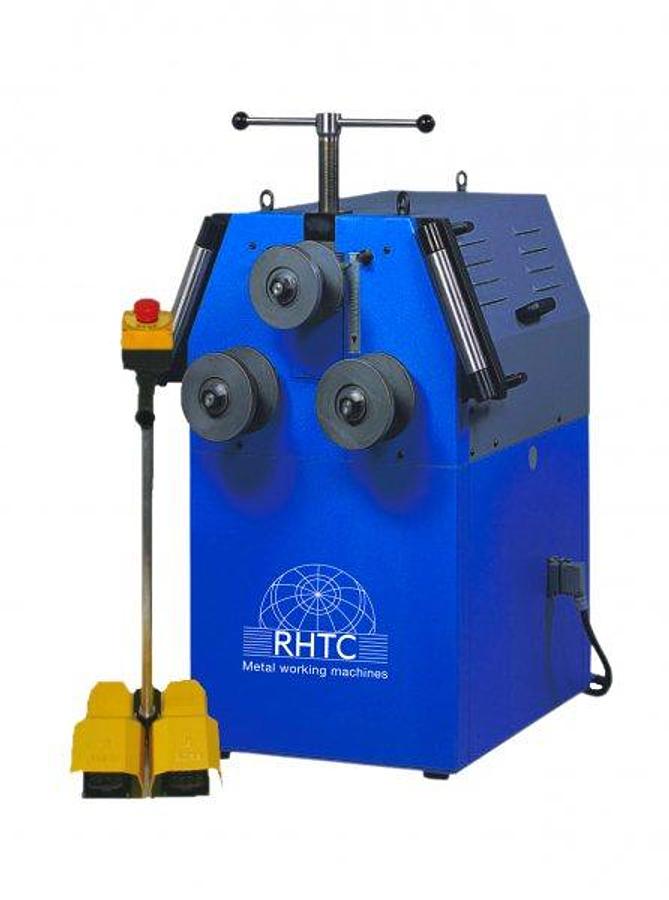

Profile Bending Machine
Profile Bending Machines PB 60-2
Shaft Diameter [mm]: Ø 30
Roll Diameter [mm]: Ø 132
Shaft [rpm]: 7
Voltage [v/Hz]: 400/50
Driving motor [kw]: 0,75
Adjusting way [mm]: 95
Weight [kg]: 220
Dimensions l x w x h [mm]: 530 x 670 x 630
– Two driven rolls
– Standard rolls
– Guide rolls
– Horizontal and vertical working position
– Foot pedal with safety device
– Special rolls for all kinds of profiles/tubes
– Correcting tooling for angle profile
Tube End Deburrer
H.M Model ZP45 Tube End Deburrer
Danish made deburring machine for box-section and tube of up to 90mmØ.
With two-speed motor, adjustable wheel cover and v-block/flat support.
